Densified Eu2+- doped SrAl2O4 by Pulsed Electric Current Sintering

Makoto Nanko, Shinya Taniguchi and Koji Matsumaru

Copyright AD-TECH; licensee AZoM.com Pty Ltd.
This is an AZo Open Access Rewards System (AZo-OARS) article distributed under the terms of the AZo–OARS https://www.azom.com/oars.asp which permits unrestricted use provided the original work is properly cited but is limited to non-commercial distribution and reproduction.

AZojomo (ISSN 1833-122X) Volume 4 July 2008

Topics Covered

Abstract
Introduction
Experimental Procedure
Results and Discussion
Conclusions
Acknowledgements
References
Contact Details

Abstract

Eu2+-doped SrAl2O4 (SrAl2O4:Eu2+) was synthesized by a conventional solid-state reaction process and consolidated by pulsed electric current sintering. It was found that highly densified bodies were obtained at die temperature of 1600ºC for 5 min under 57 MPa in vacuum. The sintered SrAl2O4: Eu2+ showed good photoluminescence by UV light irradiation and mechanoluminescence by elastic deformation. Physical properties of sintered SrAl2O4:Eu2+ were also evaluated such as Young’s modulus, Vicker’s hardness, Poison’s ratio and thermal conductivity at room temperature.

Keywords
SrAl2O4: Eu2+, Pulsed Electric Current Sintering (PECS), Densification, Physical Properties, Luminesence.

Introduction

SrAl2O4-based ceramics, such as SrAl2O4:Eu2+ and SrAl2O4:Eu2+,Dy3+, are excellent phosphor oxides with strong photoluminescence at green visible region [1-4] and exhibits mechanoluminesence phenomenon [5-7], which is a light emission caused by mechanical stress such as collision. However this phosphor oxide is difficult to obtain densified bodies [7]. In order to develop new applications of this phosphor oxide, densification technique should be established.

Pulsed electric current sintering (PECS) technique [8-14] is the latest pressure-sintering process, and is consisted by applying pulsed electric current into conductive die and /or sample in the die to rise temperature. This method is sometimes called as Spark Plasma Sintering (SPS). Rapid heating (a few minuets to 2000ºC!) can be achieved in the PECS technique. PECS is also useful to consolidate advanced materials which are difficult to densify in conventional sintering techniques, such as nano-composites, ceramics and intermetallic compounds [14-17].

Hasezaki et al. reported sintering and phosphorescent properties of SrAl2O4 ceramics by PECS [18]. They sintered the powder mixture of SrCO3, Al2O3, Eu2O3 and Dy2O3 by PECS and successfully sintered SrAl2O4 co-doped with Dy3+ and Eu2+. However they did not mentioned the densification. In the present study, the PECS process was applied to SrAl2O4: Eu2+ powder synthesized by the solid-state reaction. Physical properties of sintered SrAl2O4: Eu2+ were also evaluated such as Young’s modulus, Poisson’s ratio, Vicker’s hardness, heat capacity and thermal conductivity at room temperature.

Experimental Procedure

SrCO3, Al2O3 and Eu(NO3)3 were used as the starting materials. These materials were weighed to be (Sr0.99, Eu0.01)0.985Al2O4-δ. The powder mixture was prepared by mixing in ethanol with a mortar. The reacted powder was prepared with the conventional solid-state reaction process at 1400ºC for 12 h in air. The reacted powder was reduced at 1500ºC for 3 h in a stream of Ar-1% H2 gas mixture. Figure 1 shows X-ray diffraction patterns of the prepared powder. The SrAl2O4 phase was obtained after the reduction process. The powder was sintered at temperature ranging from 1400 to 1600ºC for 5 min in vacuum. The uni-axial pressure during PECS was 28 and 57 MPa. Atmospheric sintering was conducted at temperature ranging from 1300 to 1500ºC in a stream of Ar-1%H2 gas mixture. Green bodies for the atmospheric sintering were produced by cold-isostatic pressing under 200 MPa for 5 min.

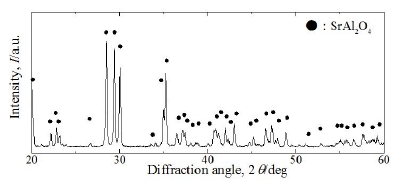

Figure 1. X-ray diffraction patterns of SrAl2O4: Eu2+ prepared by a conventional solid-state reaction processing.

Density of the sintered bodies was evaluated by a liquid-replacement technique with toluene. Microstructure of the sintered bodies was observed by scanning electron microscopy. Young’s modulus and Poisson’s ratio of the densified Eu2+-doped SrAl2O4 were evaluated by using the ultrasonic technique with 5 MHz in frequency [19]. Vicker’s hardness was measured under 245 mN for 15 s. Thermal conductivity measurement was conducted by using a leaser flush method with heat capacity measured by the differential scanning calorimetry.

Results and Discussion

Figure 2 shows relative density of sintered body as a function of sintering temperature in atmospheric sintering in a stream of Ar-1%H2 gas mixture. Relative density increases with increasing sintering temperature and reaches to approximately 60%. Figure 3 shows SEM photographs of fractured surfaces of sintered SrAl2O4:Eu2+ by the atmospheric sintering at 1300 and 1500ºC. Even the sample sintered at 1500ºC (Figure 3 (b)) is in the initial or intermediate stage in sintering. As Zheng described previously[7] , SrAl2O4: Eu2+ has low sinterability in pressureless sintering.

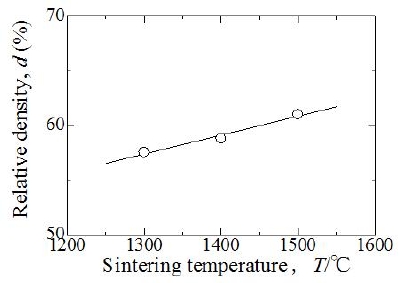

Figure 2. Relative density as a function of sintering temperature on atmospheric sintering of SrAl2O4: Eu2+ in a stream of Ar-1%H2 gas mixture.


Figure 3. SEM photographs of fractured surfaces of sintered SrAl2O4:Eu2+ by the atmospheric sintering in a stream of gas mixture of Ar-1% H2. (a) and (b) show the fractured surfaces of the samples sintered at 1300 and 1500ºC and , respectively.


Figure 4 shows relative density of sintered body as a function of sintering temperature (die surface temperature) via PECS process. SrAl2O4:Eu2+ can be densified into over 99% by PECS at 1600ºC for 5 min under 57 MPa in the uni-axial pressure.

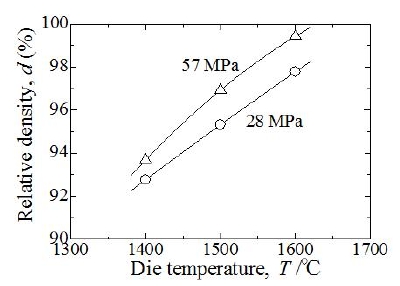

Figure 4. Relative density of sintered body as a function of sintering temperature (die surface temperature) via PECS process.


Figure 5 shows SEM photographs of fractured surfaces of sintered SrAl2O4:Eu2+ by PECS process. The samples densified by PECS at 1500ºC include only closed pores. In the sintered body consolidated by PECS at 1600ºC under 57 MPa, closed pores are not observed on the fractured surface. In order to densify SrAl2O4 ceramics, it is useful to apply high pressure during sintering.


Figure 5.SEM photographs of fractured surfaces of sintered SrAl2O4:Eu2+ by PECS process.

The dense SrAl2O4:Eu2+ bodies showed good photoluminescence by UV irradiation (Figure 6) and mechnoluminescence by plastic deformation (Figure 7). Brightness of their luminescence is easily observed by the necked eyes. Table 1 shows the some physical properties of the sintered SrAl2O4:Eu2+at room temperature. Young’s modulus and hardness of SrAl2O4:Eu2+ are comparable silica glass and lower than structure ceramics such as mullite and Al2O3.

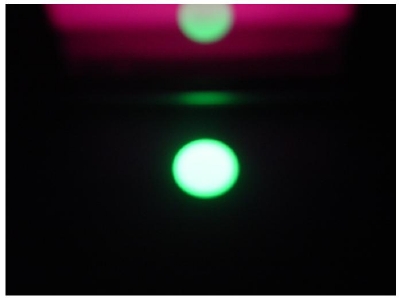

Figure 6. Photoluminascence of sintered SrAl2O4:Eu2+ by PECS process.

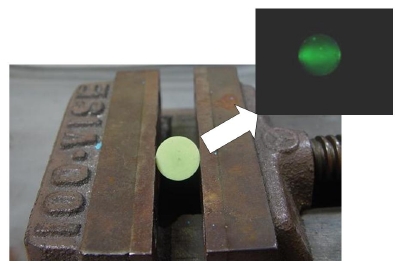

Figure 7. Mechanoluminascence of sintered SrAl2O4:Eu2+ by PECS process.

Table 1. Physical properties of sintered SrAl2O4: Eu2+

SrAl2O4:Eu2+
(Present Work)

Al2O3 [20]

Mullite [20]

Silica Glass [21]

Density/ Mgm-3

3.5

3.9

3.2

2.2

Young’s Modulus/ GPa

102

380

210

74

Poison's Ratio

0.23

0.23

0.27

0.17

Vickers Hardness / GPa

6.8

17.5

11

8.9

Heat Capacity / Jg-1K-1

.57

0.78

0.75

0.75

Thermal Conductivity / Wm-1K-1

2.8

34

5

1.38

Conclusions

Highly densified SrAl2O4:Eu2+ can be obtained by PECS processing with the powder synthesized by the conventional solid-state reaction process. The sintered SrAl2O4:Eu2+shows good photoluminescence and mechnoluminescence with high brightness which is easily visible by the necked eyes. Physical properties of sintered SrAl2O4:Eu2+ were also evaluated at room temperature. Young’s modulus, hardness and thermal conductivity of SrAl2O4:Eu2+ were approximately comparable with silica glass.

Acknowledgements

The authors thank Associate Professor I. Ihara for evaluating the elastic properties, Associate Professor, S. Nagasawa for evaluating the Vicker’s hardness and Associate Professor M. Takeda for evaluates thermal conductivity of sintered SrAl2O4:Eu2+. The authors also wish to express their gratitude to the Japanese government for partially supporting the present work through the 21st Century Center of Excellence (COE) Program of the Ministry of Education, Culture, Sports, Science and Technology (MEXT).

References

1. G. Blasse and A. Bril, “Fluorescence of Eu2+-Activated Alkaline-Earth Aluminates”, Philips Res. Repts., 23 (1968) 201-206.
2. F. C. Palilla, A. K. Levine and M. R. Tomkus, “Fluorescent Properties of Alkaine Earth Aluminates of the Type MAl2O4 Activated by Divalent Europium”, J. Electrochem. Soc., 115 (1968) 642-644.
3. V. Abbruscato, “Optical and Electrical Properties of SrAl2O4:Eu2+ ”, J. Electrochem. Soc., 118 (1971) 930-932.
4. T. Matsuzawa, Y. Aoki, N. Takeuchi and Y. Murayama, “A New Long Phosphorescent Phosphor with High Brightness, SrAl2O4:Eu2+,Dy3+”, J. Electrochem. Soc., 143 (1996) 2670-2673.
5. C. N. Xu, H. Yamada, X. Wang and X. G. Zheng, “Strong Elasticoluminescence form Monoclinic-Structure SrAl2O4”, Appl. Phys. Lett., 84 (2004) 3040-3042.
6. C. N. Xu, “Hybrid Materials of Mechnoluminescence”, Ceramics Japan, 39 (2004) 130-133.
7. C. N. Xu, “Novel Approach to Strong Elasticoluminescence Materials and Devices”, Matria Jpn., 44 (2005) 743-748.
8. M. Tokita, “Trends in Advanced SPS Spark Plasma Sintering Systems and Technology,” J. Soc. Powder Technol. Jpn., 30 (1993) 790-804.
9. M. Nanko, H. Onishi and K. Ishizaki, “New Sintering Processes for Porous Materials”, Ceram. Indust., 145 (1996) 31-37.
10. O. Yanagisawa, T. Hatayama and K. Matsuki, “Recent Research on Spark Sintering Process”, Materia Jpn., 33 (1994) 1489-1496.
11. N. Murakami, “New Trend in Sintering Technology. What We Can Do by Pulse Electric Current Sintering?”, Ceramics Japan, 32 (1997) 445-449.
12. V. Mamedov, “Spark Plasma Sintering as Advanced PM Sintering Method”, Powder Metall., 45 (2002) 322-328.
13. R. S. Dobedoe, G. C. West and M. H. Lewis, “Spark Plasma Sintering of Ceramics”, Bull. Euro. Ceram. Soc., 1 (2003) 19-24.
14. S. Sugiyama and H. Taimatsu, “Mechnical Properties of WC-WB-W2B Composites Prepared by Reaction Sintering of B4C-W-WC Powders”, J. Euro. Ceram. Soc., 24 (2004) 871-876.
15. Y. Ikarashi and K. Ishizaki, “Forming Study on Reactive Sintering of Si3Zr5 by Pulse Electric Current Sintering", Adv. Tech. Mater. Proc. J., 1 (1999) 79-89.
16. K. Ozaki, T. Nishio, A. Matsumoto and K. Kobayashi, “Preparing Mg-Ni-Si Amorphous Powders by Mechanical Alloying and Consolidation by Pulsed Current Sintering”, Mater. Sci. Eng. A, 375-377 (2004) 857-860.
17. L. Gao, X. Jin, H. Kawaoka, T. Sekino and K. Niihara, “Microstructure and Mechanical Properties of SiC-Mullite Nanocomposites Prepared by Spark Plasma Sintering”, Mater. Sci. Eng. A, 334 (2002) 262-266.
18. K. Hasezaki, G. Kaneko, C. Yashida, H. Araki and H. Kitagawa, “Sintering and Phosphorescent Properties of Strontium Aluminate (SrAl2O4) Phosphors by Spark Plasma Sintering”, J. Jpn. Soc. Powder Powder Metall., 53 (2006) 507-509.
19. J. Krautkramer and H. Krautkramer, Translated by J. D. Hislop, “Ultrasonic Testing of Materials”, Springer-Verlag. Co., Germany (1990) pp.533-534.
20. Kyocera Co. Catalog, “Mechanical & Industrial Ceramics”.
21. Tosoh Co. Catalog, “Synthetic Fused Quartz”.


Contact Details

Makoto Nanko, Shinya Taniguchi and Koji Matsumaru

Nagaoka University of Technology
Department of Mechanical Engineering,
Kamitomioka, Nagaoka, Niigata 940-2188
JAPAN





This paper will be also published in “Advances in Technology of Materials and Materials Processing Journal, 9[2] (2007) 125-130”.
