An Introduction to Pyrometallurgical Technologies

Metals in ores exist in the form of oxides, sulphides, carbonates and other compounds. Metal ores also contain impurities or gangue materials. In the processing of metal ores to metals which are in common industrial use – steel, aluminium, nickel, copper, titanium, and many others, metal oxides or other compounds are converted to the metallic state by a reduction process and separated from gangue materials before or after reduction. Two major metallurgical routes to produce industrial metals are pyrometallurgy and hydrometallurgy.

Pyrometallurgical technologies include the thermal treatment of metal ores to extract valuable metals, while hydrometallurgy is based on the use of aqueous chemicals at much lower temperatures.

Pyrometallurgical routes are used in the commercial production of steel, aluminium, metallurgical silicon, manganese, chromium, titanium, and many other metals and alloys. The significant energy consuming processes in metals extraction are the reduction and smelting stages with formation of two immiscible phases – molten metal and the predominantly metal oxide phase, slag.

The temperature and energy required for the conversion of a metal oxide (or other compound) to the pure metal are defined by reaction thermodynamics and kinetics. A major reductant for metal oxides is carbon in the form of coke or char. Carbothermal reduction of a metal oxide MOx can be presented by the reaction:

MOx + xC = M + xCO (1)

Metal M contains dissolved carbon and impurities which are also partially reduced. In the reduction of manganese, chromium and some other oxides, carbides MCy are formed:

MOx + (y+x)C = MCy + xCO (2)

Industrial metallurgical processes based on carbothermal reduction of metal oxides are energy intensive. Energy input to the smelting/reduction furnace in some industrial processes is presented in Table 1. Table 1 also includes the enthalpy of formation of oxides, standard Gibbs free energy change for the reduction reaction leading to the formation of CO and the equilibrium reduction temperature.

Carbothermal reduction of stable metal oxides such as MnO, Cr2O3, SiO2, TiO2 and Al2O3 requires high temperatures. To have high productivity, industrial processes are run at much higher temperatures than those listed in Table 1. Thus, ferromanganese is produced at 1450- 1500oC; reduction of iron oxides in a blast furnace takes place at about 1000oC; temperature in the ferrochromium production is above 1700oC, in silicon production – above 1800oC.

Carbothermal reduction of titania to titanium carbide is conducted at 1700-2100oC.

The high temperature required for the carbothermal reduction of alumina is a major obstacle in the development of carbothermal technology for aluminium production. The major technology for aluminium production is electrolysis using the Hall-Herault process.

In general, energy and exergy consumption increases with the further away the reaction takes place from the equilibrium temperature [6]. However, near-equilibrium processes are too slow to be commercially viable.

However, the efficiency of carbothermal reduction processes can be improved by decreasing the reduction temperature and improving the reaction kinetics. This can be achieved by decreasing the CO partial pressure and/or increasing mass transfer in the gas phase by running reduction processes in an inert atmosphere or in hydrogen, to aid the reduction reaction.

Table 1: Enthalpy of oxides formation, reduction reactions, standard Gibbs free energy change, equilibrium temperature and energy input to the smelting/reduction furnace

Oxide

Enthalpy of formation kJ/mol metal [1]

Reduction reaction

Standard Gibbs free energy, kJ (calculated using data from [1])

Equilibrium temperature, oC

Energy input to the smelting/reduction furnace kJ/mol metal

Mn3O4

-416

MnO + 10/7C = 1/7Mn7C3 + CO

256.0 – 0.159T

1337

1,614 [2]-

1,240 [3]

Cr2O3

-554

1/2Cr2O3 + 13/6C = 1/3Cr3C2 + 3/2CO

359.4 – 0.259T

1113

1,654-1,934 [4]

TiO2

-940

TiO2 + 3C =

TiC + 2CO

371.8 – 0.2541T

1190

Al2O3

-842

1/2Al2O3 + 9/4C = 1/4Al4C3 + 3/2CO

599.4– 0.264T

1998

1,264-1,750 1)

SiO2(quartz)

-906

SiO2 + 3C =

SiC + 2CO

604.7 – 0.355T

1430

2,822-3,218 [5]

Fe2O3

-406

1/2Fe2O3 + 3/2C = Fe + 3/2CO

235.3 - 0.2547T

655

9552)

1,5283)

1)Aluminium is produced by electrolysis using the Hall-Herault process with energy consumption in the range 13-18 kWh/kg.
2)Blast furnace process with coke consumption 500 kg/tonne hot metal
3)Direct iron smelting process with coal consumption 800 kg/tonne hot metal

At low temperatures, reduction of oxides takes place in the solid state. It is well recognised that carbothermal reduction of metal oxides in the solid state occurs through the gas phase.

Overall reactions for reduction of oxide MOx to metal M (reaction (1)) can be presented by reactions (3) and (4):

MOx + xCO = M + xCO2 (3)

CO2 + C = 2CO (4)

Reduction of metal oxide to carbide MCy (reaction 2) can be presented by reactions (5) and (4):

MOx + (x + 2y)CO = MCy + (x+y)CO2 (5)

When carbothermal reduction takes place in the hydrogen-containing gas atmosphere, methane is formed by the reaction of carbon with hydrogen (reaction (6)). It changes the mechanism of reduction which then proceeds via reaction (7).

C + 2H2 = CH4 (6)

MOx + (x+y)CH4 = MCy + xCO + 2(x+y)H2 (7)

Reduction of manganese, chromium and titanium oxides by methane-containing gas was studied in [7-14], while carbothermal reduction of stable metal oxides in different gas atmospheres was examined in [15-25].

In reactions (3) and (4) or (5) and (4), carbon and oxygen are transferred between solid phases by CO and CO2, respectively. In the reduction of stable metal oxides like manganese or titanium oxides, CO2 partial pressure is very low, below 10-4 atm (subject to the applicable temperature); the mass transfer can then be a limiting stage for the reaction rate. In reactions (6) and (7), carbon is transferred between solid carbonaceous material and oxide by CH4 with the formation of CO and H2 which are transferred to the gas phase. The partial pressure of CH4 is much higher than the partial pressure of CO2, this allows the carbothermal reduction of manganese and titanium oxides in the H2-containing gas to occur at a much faster rate.

The gas phase also plays an important role when reduction proceeds with the formation of metal or metal oxide vapour, as in the case of the reduction of alumina [25]. Gas species are directly involved in the carbothermal reactions; the composition of the gas phase therby affects the reaction rate.

Our research in carbothermal reduction of manganese, titanium and aluminium oxides showed [15-25] that reduction temperature can be decreased by 300-400oC.

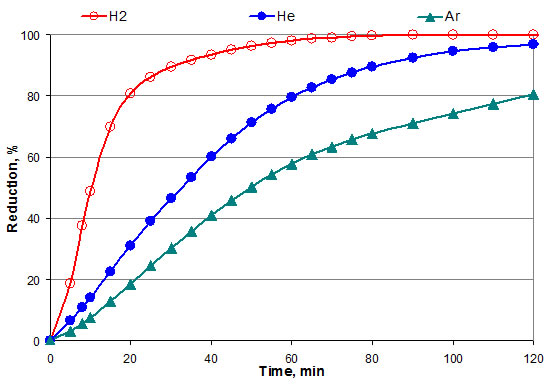

Reduction of manganese oxide MnO in different gas atmospheres at 1275oC

Figure 1. Reduction of manganese oxide MnO in different gas atmospheres at 1275oC

Further, it has been shown that the control of the gas atmosphere in reduction reactions is an important factor in the development of pyrometallurgical technologies.

References

  1. Turkdogan, E. T. (1980) Physical Chemistry of High Temperature Technology, Academic Press, NY.
  2. Lyakishev, N.P. and Gasik, M.I. (2005) Physical Chemistry and Electrometallurgical Technology of Ferroalloys, Moscow, Eliz (in Russian).
  3. Olsen, S.E., Tangstad, M. and Lindstad, T. (2007) Production of Manganese Alloys, SINTEF and Tapir Academic Press, Trondheim.
  4. Ryss, M.A. (1985) Production of Ferroalloys, Moscow, Metallurgy (in Russian).
  5. Schei, A., Tuset, J. K. and Tveit, H. (1998) Production of High Silicon Alloys. Trondheim, Tapir.
  6. Ostrovski, O. and Zhang, G. (2005) Energy and Exergy Analyses of Direct Iron Smelting Processes, Energy, 30, 2772-2783.
  7. Zhang, G. and Ostrovski, O. (2000) Reduction of Titania by Methane-Hydrogen-Argon Gas Mixture, Metallurgical and Materials Transactions B, 31B (2), 129-139.
  8. Zhang, G. and Ostrovski, O. (2001) Reduction of Ilmenite Concentrate by Methane-containing Gas. Part 1 Effects of Ilmenite Composition, Temperature and Gas Composition, Canadian Metallurgy Quarterly, 40 (3), 317-326.
  9. Zhang, G. and Ostrovski, O. (2001) Reduction of Ilmenite Concentrate by Methane-containing Gas. Part 2 Effects of Preoxidation and Sintering, Canadian Metallurgy Quarterly, 40 (4), 489-497.
  10. Zhang, G. and Ostrovski, O. (2002) Effect of Preoxidation and Sintering on Properties of Ilmenite Concentrates, International Journal of Mineral Processing, 64 (4), 201-218.
  11. Anacleto, N. and Ostrovski, O. (2004) Solid State Reduction of Chromium Oxide by Methane-Containing Slag, Metallurgical and Materials Transactions B, 35B, 609-619.
  12. Anacleto, N., Ostrovski, O. and Ganguly, S. (2004) Solid State Reduction of Manganese Oxides by Methane-Containing Gas, ISIJ International, 44, 1480-1487.
  13. Anacleto, N., Ostrovski, O. and Ganguly, S. (2004) Reduction of Manganese Ores by Methane-Containing Gas, ISIJ International, 44, 1615-1622.
  14. Ostrovski, O. and Zhang, G. (2006) Reduction and Carburization of Metal Oxides by Methane Containing Gas, AIChE Journal, 52, 300-310.
  15. Kononov, R., Ostrovski, O. and Ganguly, S. (2008) Carbothermal Reduction of Manganese Oxide in Different Gas Atmospheres, Metallurgical and Materials Transactions B, 39B, 662-668.
  16. Kononov R., Ostrovski O. and Ganguly S. (2009) Carbothermal Solid State Reduction of Manganese Ores: 1. Manganese Ore Characterisation, ISIJ International, 49 (8), 1099-1106.
  17. Kononov R., Ostrovski O. and Ganguly S. (2009) Carbothermal Solid State Reduction of Manganese Ores: 2. Non-isothermal and Isothermal Reduction in Different Gas Atmospheres, ISIJ International, 49 (8), 1107-1114.
  18. Kononov R., Ostrovski O. and Ganguly S. (2009) Carbothermal Solid State Reduction of Manganese Ores: 3. Phase Development, ISIJ International, 49 (8), 1115-1122.
  19. Dewan, M., Zhang, G. and Ostrovski, O. (2009) Carbothermal Reduction of Titania in Different Gas Atmospheres, Metallurgical and Materials Transactions B, 40B(1), 62-69.
  20. Dewan, M.A.R., Zhang, G. and Ostrovski, O. (2010) Carbothermal Reduction of a Primary Ilmenite Concentrate in Different Gas Atmospheres, Metallurgical and Materials Transactions B, 41B (1), 182-192
  21. Dewan, M.A.R., Zhang G. and Ostrovski, O. (2010) Phase Development in Carbothermal Reduction of Ilmenite Concentrates and Synthetic Rutile, ISIJ International, 50 (5), 647-657.
  22. Ostrovski, O., Zhang, G., Kononov, R., Dewan, M.A.R. and Li, J. (2010) Carbothermal Solid State Reduction of Stable Metal Oxides, Steel Research International, 81 (10), 841-846.
  23. Dewan, M.A.R., Zhang G. and Ostrovski, O. (2011) Carbothermal Reduction of Ilmenite Concentrates and Synthetic Rutile in Different Gas Atmospheres, Minerals Processing and Extractive Metallurgy, 120 (2), 111-117.
  24. Rezan, S. A., Zhang, G. and Ostrovski, O. (2011) Carbothermal Reduction and Nitridation of Titanium Dioxide in the H2-N2 Gas Mixture, Journal of American Ceramic Society, accepted 27 May 2011.
  25. Li, J., Zhang, G., Liu, D. and Ostrovski, O. (2001) Low-temperature Synthesis of Aluminium Carbide, ISIJ Int., accepted 22 March 2011.
