Improved TPT Mini-Peristaltic Pump

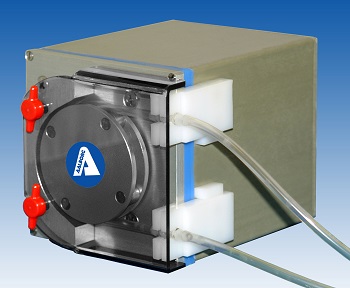

Aalborg® Instruments’ Improved Model TPT Mini peristaltic pumps provide low cost, reliable service. Flow rates are user-selectable from 7 mL/min to 28 mL/min by selecting from a choice of four different RPM drives (8, 12, 17, or 25) and tubing sizes.

Simple to load and operate, two plastic slide on/off plastic tubing holders accommodate easy tubing replacements or tubing size changes. In addition, two thumbscrews mounted on the housing allow easy occlusion wall adjustments and secure the safety shield.

Recommended tubing sizes include: 1/16” ID x 1/32” wall and 1/8” ID x 1/32” wall.

Construction:

3.5 lb. pump with a 5”x 4” footprint
Rigid fiberglass housing
4 roller aluminum pump head
Cast bronze self-lubricating rollers
Self-priming
ON-OFF, CW-CCW reversible settings
Continuous duty 24 VDC brush style gear motor with internal permanent magnet

Options:

Power Supply 24 VDC, 1.08 Amp, 2.1mm, center positive DC jack
Counter  that indicates the number of revolutions with manual or pre-set feature

TPT pumps are ideal for residential, laboratory, and industrial applications including pH control, fermentation equipment, nutrient dosing, and environmental sampling functions
