Shuttle Allows Waterjet Operators to Keep Cutting While Unloading Parts
Jet Edge proudly introduces its latest generation of Waterjet Shuttle Systems. Designed especially for high-volume water-only waterjet cutting applications, Jet Edge Waterjet Shuttle Systems dramatically increase productivity by allowing operators to continue cutting as they unload finished parts.

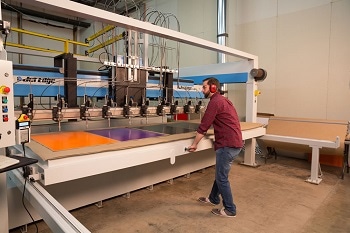

Manufactured for industrial use, Jet Edge waterjet shuttles are available in a High Rail Gantry format supporting up to 12 cutting heads or a Mid Rail Gantry format supporting up to four cutting heads. To operate the shuttle, the operator simply rolls out the top cutting table like a drawer and continues cutting on the bottom table as parts are unloaded. Powered shuttles are also available.
Jet Edge Waterjet Shuttle Systems are available in a wide range of sizes; an optional spreader bar allows operators to expand the cutting area beyond the waterjet gantry for cutting large sheets. The shuttle systems feature Jet Edge’s signature Aquavision® Di controller. The Aquavision® Di is the most advanced motion controller in the industry. It guides the user through the process from job set-up to production. Single parts, mirroring, rotation, plate alignment and part arrays (optional) are at the operator’s fingertips. It is fully networkable.
Jet Edge precision waterjet systems lead the industry in precision and accuracy, holding +/- 0.001" linear positional accuracy (over 12") per axis and +/- 0.001" repeatability (bi-directional). Moving elements are supported on THK linear ways, precision ball screws are directly coupled to servomotors, and XY mechanical components are protected by a lip seal system. Critical motion components are protected with metal covers, brushes, labyrinth passages, lip seals, and high-volume low-pressure filtered air. Jet Edge offers the widest range of waterjet pumps in the industry, 36,000 psi, 60,000 psi and 75,000 psi models are available from 30-280 hp.
Water-only waterjets cut soft materials such as gaskets, foam, rubber, film, paper, cardboard, carpet, insulation, food and foil. Abrasive must be added to cut harder materials such as metal and stone.
Jet Edge waterjets are proudly manufactured by Jet Edge, Inc. in St. Michael, Minnesota, U.S.A. For information, visit www.jetedge.com, e-mail [email protected] or call 1-800-JET-EDGE (538-3343) or +1-763-497-8700.
Established in 1984, Jet Edge is a global designer and manufacturer of waterjet systems for precision cutting, mobile cutting, surface preparation and coating removal. Jet Edge waterjets are used around the world in a broad range of industries, from the world's leading airlines to automotive, aerospace, industrial manufacturers, machine and job shops. Jet Edge waterjets are proudly made in the U.S.A. For more information about Jet Edge, visit www.jetedge.com, e-mail [email protected] or call 1-800-JET-EDGE (538-3343).
