Cutting for Surface Preparation Applications with the IP60-150

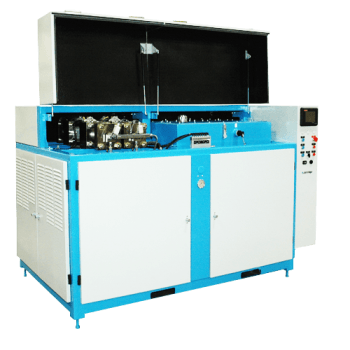

Jet Edge Waterjet Systems provides a series of ultra-high-pressure pumps that are ideal for a variety of applications ranging from cutting samples with water only or a continuous and reliable operation that utilizes multiple abrasive jets. Otherwise referred to as the ‘King of Pumps’, Jet Edge’s IP60-150 Waterjet pump offers users with thicker, better and tougher cutting solutions as a result of its exceptional power capabilities.

Additionally, the exceptional power associated with this pump allows it to be capable of running multiple cutting heads with high abrasive content for increased speed and finish accuracy as compared to other pumps.

The IP60-150 is particularly useful when used for large table cutting purposes, surface preparation applications, and mobile cutting. Jet Edge offers users with an engineering analysis and customized solution to ensure that all application needs are met.

Product Specifications

  • Rated pressure: 60,000 psi (4,100 bar)
  • Motor output: 150 hp (112 kw)
  • UHP flow rate: 3.0 gpm (11.4 lpm) at 55,000 psi
  • Maximum rated orifice size: 0.025 inches (0.63 mm)
  • Two single pistons
  • Dual plunger intensifiers
  • Pump warranty: one year or 2,000-hour run
  • Hydraulic circuit warranty: two years or 4,000-hour run
  • Free life-time factory product training
