Posted in | Pumps | High Pressure Pumps

Eliminating Cracking and Threads on High Pressure Cylinders with IP60-100

Jet Edge Waterjet Systems offers their customers a series of ultra-high-pressure pumps that can be used for a wide range of applications from cutting samples with water only or a continuous operation that requires the use of multiple abrasive jets.

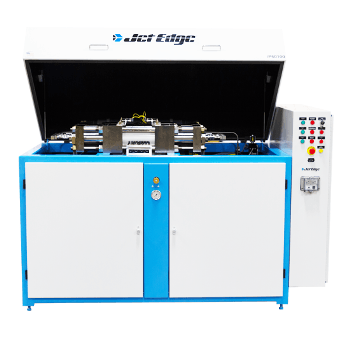

For example, Jet Edge’s IP60-100 Waterjet Intensifier pump is equipped with a reliable tie-rod design that ensures any threads on the high-pressure cylinders, end caps, and hydraulic cylinders are eliminated.

As a result of this lack of unnecessary threads, the design of this pump significantly reduces the chance of cracking while also increasing the overall life of all components. In addition to its optimal design, the IP60-100 also comes with a dual intensifier and optional controls package to ensure that this product remains the most versatile pump currently available on the market. Jet Edge also offers customers with customized solutions and a complete engineering analysis of their given application.

Product Specifications

  • Rated pressure: 60,000 psi (4,100 bar)
  • Motor output: 100 hp (75 kw)
  • UHP flow rate: 2.0 gpm (7.6 lpm) at 55,000 psi
  • Maximum rated orifice size: 0.021 inches (0.53 mm)
  • Two single pistons
  • Dual plunger intensifiers
  • Pump warranty: one year or 2,000-hour run
  • Hydraulic circuit warranty: two years or 4,000-hour run
  • Free life-time factory product training
