New Synthetic Process to Develop 2D Polymers Using Surfactant Monolayer

Scientists at the Center for Advancing Electronics Dresden (cfaed) at TU Dresden have succeeded in synthesizing sheet-like 2D polymers by a bottom-up process for the first time. A novel synthetic reaction route was developed for this purpose. The 2D polymers consist of only a few single atomic layers and, due to their very special properties, are a promising material for use in electronic components and systems of a new generation.

The Novel Synthetic Route

Since 2014, a group of scientists from Technische Universität Dresden and Universität Ulm joined forces to pursue this intriguing yet challenging goal. The research team led by Prof. Dr. Xinliang Feng (TU Dresden) innovatively developed a novel synthetic route using surfactant monolayer as a soft template to guide the supramolecular organization of monomers and the subsequent 2D polymerization at an air-water interface.

Promising Electroactive Materials for Thin-film Organic Electronics

This synthetic methodology is now termed as surfactant-monolayer-assistant interfacial synthesis (SMAIS). By using the SMAIS method, Dr. Tao Zhang synthesized crystalline quasi-2D polyaniline films with lateral size ~50 cm2 and tunable thickness (2.6 - 30 nm).

The superior charge transport properties and chemiresistivity toward ammonia and volatile organic compounds render the quasi-2D polyaniline films as promising electroactive materials for thin-film organic electronics.

Highly Crystalline Few-layer 2D Polyimide and Polyamide

To further explore the potential of SMAIS, Mr. Kejun Liu, Dr. Tao Zhang, Dr. Zhikun Zheng and Dr. Renhao Dong achieved controlled synthesis of highly crystalline few-layer 2D polyimide and polyamide for the first time. The 2D polymers have a thickness of only a few nanometers and can be readily transferred onto arbitrary substrates, opening exciting opportunity for the integration of 2D polymers into next-generation devices and systems.

Successful Structural Disintegration Under the Electron Beam

Along with the pivotal developments on the synthesis front, the transmission electron microscopy group led by Prof. Dr. Ute Kaiser (Ulm University) provided another indispensable pillar of the joint research. Since the development of aberration correction, high-resolution TEM imaging has been a powerful technique in structural characterization down to the atomic scale.

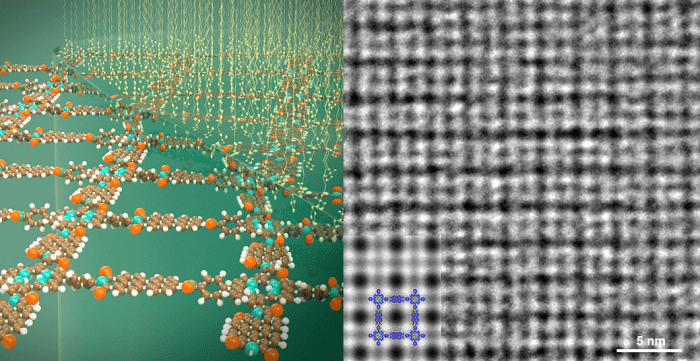

Yet, hydrogen-containing organic materials are extremely prone to structural disintegration under the electron beam, rendering HRTEM imaging of 2D polymers a highly demanding mission. By utilizing the spherical-aberration-corrected HRTEM, Dr. Haoyuan Qi has successfully unraveled the micro-morphology, molecular structures, grain boundary and edge structures, of the synthetic 2D polymers: an achievement which is rarely reported in literature.

The molecular structures and overall crystallinity have been further elucidated via synchrotron grazing-incidence X-ray scattering (cfaed Chair for Organic Devices, Prof. Dr. Stefan Mannsfeld, TU Dresden). The group of Prof. Dr. Thomas Heine (TU Dresden) provided density-functional tight-binding calculations which offers significant insights into the atomistic structures of the synthetic 2D polymers. The research result is a collaborative work of several groups at TU Dresden and the Ulm University and was published this week in two related articles in the scientific journals "Nature Chemistry" and "Nature Communications".

Extending Polymerization into the Second Dimension

Ever since Hermann Staudinger discovered the linear polymers in 1920, it has been a dream of synthetic scientists to extend the polymerization into the second dimension. A two-dimensional (2D) polymer is a sheet-like monomolecular macromolecule consisting of laterally connected repeat units with end groups along all edges.

Given the enormous chemical and structural diversity of the building blocks (i.e., monomers), 2D polymers hold great promise in the rational material design tailored for next-generation applications, such as:

  • Membrane separation
  • Electronics
  • Optical devices
  • Energy storage and conversion


However, despite the tremendous developments in synthetic chemistry over the last century, the bottom-up synthesis of 2D polymers with defined structures remains a formidable task.
