The VHE preheating furnace is economical in use and is priced to offer an excellent return on investment, with a short pay-back period.
Most smelters add cold aluminium metal to the charge of molten aluminium in the casthouse furnaces. This metal may be in the form of sows, pure offcuts, or other scrap arisings.
Such metal is frequently stored outdoors and can be wet. Charging of damp aluminium to hot furnaces results in the generation of large volumes of steam, and can cause steam explosions, in the worst cases blasting molten aluminium around the casthouse.
Traditionally, scrap metal has been heated with a gas flame to remove moisture, but such localised heating can never fully remove water, and steam explosion can still occur.
VHE‘s furnace, which is semi-automatic, is able to heat 15 tonnes of scrap to 200°C within 2 hours. At this temperature all water and many low-boiling point organics are fully removed. The oven is electrically heated and uses the recirculating air principle for best efficiency.

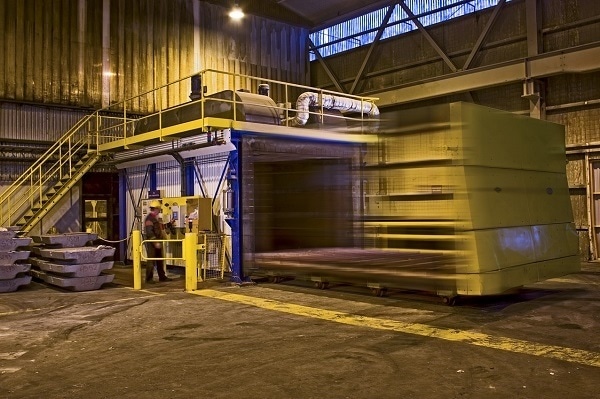

VHE has installed a preheating furnace for the Rio Tinto Alcan smelter at Straumsvík in Iceland.
