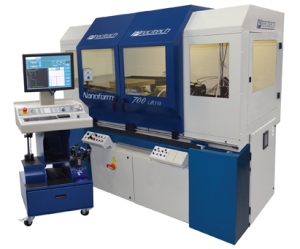

The Nanoform® 700 Ultra Multi-Axis Ultra Precision Machining System

Precitech’s Nanoform® 700 ultra is a multi-axis ultra-precision machining system that has the quality of a small frame lathe and the flexibility of a large frame lathe. It is designed for producing mirrors, optical mold inserts, optical lenses and mechanical components.

The Nanoform 700 ultra offers a 700mm swing capacity and an optional 170kg load capacity for achieving a high level of performance. It can be assembled from 2 to 4-axes to create aspheric, spherical and freeform surfaces.

Key Features

The main features of the Nanoform® 700 ultra multi-axis ultra precision machining system include:

  • Surface finish spec of 1nm Ra
  • Industry leading swing and load capacity
  • Natural granite base
  • Pneumatic vibration isolation system
  • 350X mm and 300Z mm travel oil hydrostatic machine slides
  • Air bearing HD-160 work spindle
  • Work piece balancing software
  • UPx machine controller
  • Spray mist system
  • Machine enclosure
  • Electrical safety

Download the Brochure for More Information
