PEPS® II-VX - a Digital Non-Contacting, Height Control and Active Vibration Cancellation System

PEPS® II-VX is an isolation system co-developed for ultra-precision machining by Precitech and industry experts TMC. PEPS® II-VX is a digitally operated, non-contacting, height control and active vibration cancellation system.

The system is available either as part of a new Preicitech machine, or as a retrofit on an existing Precitech system.

PEPS® II-VX uses Precitech’s established pneumatic vibration isolation technology to remove the need for a mechanical height control valve and height sensing linkage. This allows PEPS® II-VX to be the first ever active on-machine system for precision leveling and vibration isolation.

Key Benefits

  • Increases in productivity
  • Active vibration canceling provides isolation in the 0.7 Hz to 5 Hz range
  • Leveling allows XZC machining to happen faster and at a higher quality
  • Can be installed as an option on new machines, or as an upgrade on existing machines

PEPS® II-VX - a Digital Non-Contacting, Height Control and Active Vibration Cancellation System

PEPS® II-VX - a Digital Non-Contacting, Height Control and Active Vibration Cancellation System - Picture 1
PEPS® II-VX - a Digital Non-Contacting, Height Control and Active Vibration Cancellation System - Picture 2

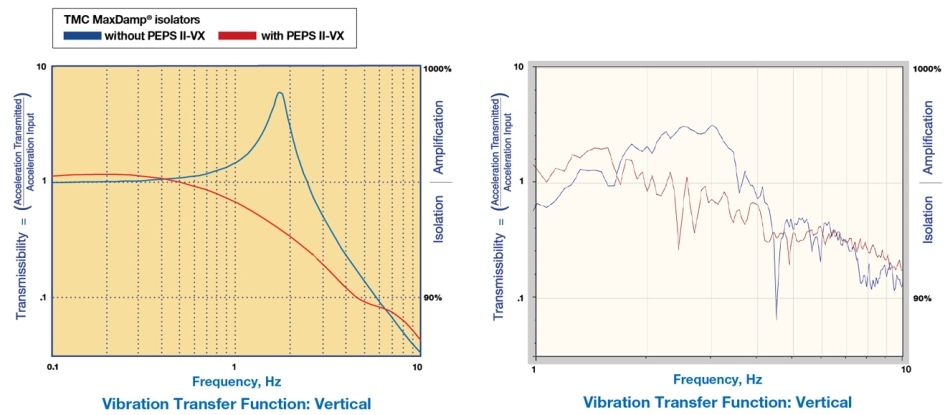

PEPS® II-VX theoretical vs. actual field data from a Nanoform X

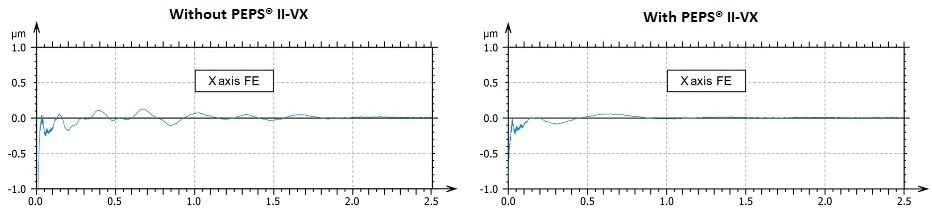

X axis following error with and without PEPS® II-VX during XZC machining
