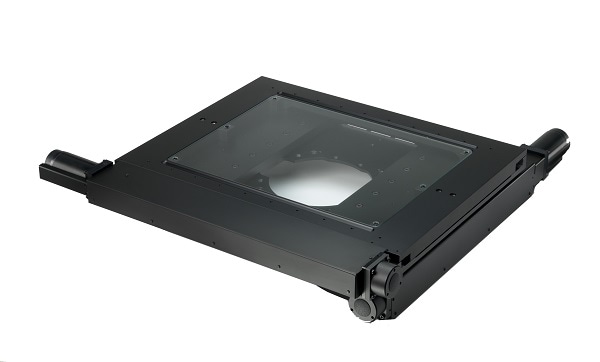

The Prior Scientific H112 microscope stage offers a travel range of over 300 x 300 mm making it ideal for accurate and precise scanning of semiconductor wafers, photo masks, flat panel displays and printed circuit boards.
Fully compatible with a wide range of microscopes the H112 can easily accommodate wafers up to 12-inches (300mm) in diameter, or samples up to 25kg in weight, and works with many robot arm wafer loaders. Furthermore, the large (250 x 250mm) transmitted light area allows transmitted, as well as reflected, light applications to be performed.
The large area scanning capability of the H112 stage is exceptionally precise, with a minimum step size of 0.04 microns and a repeatability of +/-0.7 microns. The accuracy of the H112 stage, which is enhanced by Prior’s patented Intelligent Scanning Technology (IST), is unmatched. Precision can be further improved with the addition of 100 nm encoders for challenging applications requiring the very highest precision.
Prior Scientific microscope stages have a global reputation for top quality and high repeatability. Manufactured using the highest quality components – precision bearings, zero backlash recirculating ball screws, X and Y limit switches, two high precision stepper motors and a tough scratch resistant coating - they provide trouble-free operation over extended periods of time.
For further information on the H112 microscope stage please visit www.prior-scientific.co.uk/Products/Motorized-Stages/H112.aspx or contact Prior Scientific on [email protected] / +44-1223-881711 for further information.
Prior Scientific has been manufacturing top quality, high performance equipment and instruments for optical microscopy since 1919. Prior Scientific produces a wide range of motorised stages, system controllers, robotic sample loaders and illumination devices. To find out more about this range of products please visit www.prior.com
