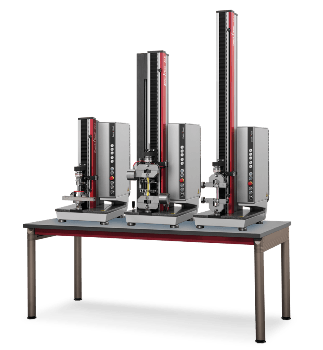

Flexible Low-Force Testing for R&D

Powerful, flexible, cost-effective testing solution for all your testing requirements.

The zwickiLine testing machine is equally ideal for research and development as it is for routine quality assurance testing. Development and manufacture of the zwickiLine, including all mechanical, electronic, and software components—together with the comprehensive range of accessories—takes place at ZwickRoell's production facility in Germany, so all components work together seamlessly.

Key Advantages and Features

Integrated safety in accordance with the EC Machinery Directive

The statutory safety requirements of the EC Machinery Directive are implemented in all ZwickRoell machines, while an EC Declaration of Conformity accompanies every machine. The most state-of-the-art safety technology and proven industrial components that comply with the highest safety and industrial standards (IEC 60947 etc.) are used. The highest degree of safety for user and testing system is guaranteed.

Powerful drives

Extremely low minimum speeds can be set, combined with high speed-stability. The drive also delivers high crosshead-travel resolution. This is important in cases such as component tests with especially demanding travel-precision requirements, or tests on specimens with high stiffness and small displacements.

The high test-speed range can be used without restriction. In addition, test loads up to 110 % of machine nominal load are permissible to compensate for heavy test fixtures, accessories etc.

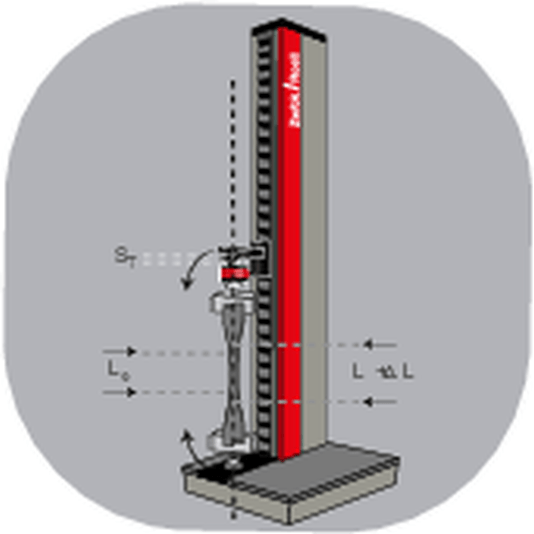

High stiffness and precise crosshead guidance

The stiff load-frame profile and generous connecting surfaces reduce the inclination angle of the crosshead under load, enabling very precise alignment and application of force to the specimen. This is advantageous for flexure tests, compression tests, precision tests on components ... and many others.

Modern, high-quality load-frame design

  • The new extruded profile used for zwickiLine possesses 6 continuous, freely accessible standard-profile slots for individual mounting of specimen materials, fixtures, safety devices, accessories etc.
  • The generous test-area depth allows the use of larger fixtures and enables bigger components to be tested. The wide base-crosshead provides optimum securing for these.
  • High quality is designed into the machine, ensuring a long service life; for example the controls for the electronics are made of hard-wearing ceramics.

Fast, convenient testing

zwickiLine can be operated in vertical or horizontal orientation as required and can be swiveled through 180° when in horizontal mode.

Modern safety enclosure

The operator is shielded from flying specimen fragments or other hazards by the CE-compliant safety enclosure featuring a large working area, transparent design and excellent accessibility

Flexible equipment options

A wide range of equipment options enables zwickiLine to be used for tests on plastics, elastomers, metals, composites, paper, board, textiles, foams, foodstuffs and components. The generous test-area depth allows the use of larger fixtures and enables bigger components to be tested. The wide base-crosshead provides optimum securing for these.

ZwickRoell Engineering—Made in Germany

The development and manufacture of materials testing machines, including all mechanical, electronic and software components, together with our comprehensive range of accessories, takes place at ZwickRoell's production facility in Germany, enabling us to create a product that is perfectly harmonized. Each materials testing machine is made of the highest quality standard enabling ZwickRoell to offer the best possible support.

Safety for the Entire Testing System

The two-channel safety circuit, including Emergency STOP, crosshead limit stop switch and interlinked accessories, Drive OFF switch and motor brake function, together with the operation mode switch, ensure enhanced safety during setup. The CE-compliant electrically interlocked safety device prevents interference with the machine during the test.

zwickiLine for flexible low-force testing
Powerful, flexible, cost-effective testing solution for all your testing requirements.

Short-span compression test
Short-span compression test to DIN 54518/ISO 9895

Glide force test on catheters
Glide force test on urological and cardiovascular catheters with thermoregulation bath

Tensile test on adhesive tape
zwickiLine materials testing machine, tensile test, paper industry

4-point flexure test
4-point flexure test on solar modules, solar industry, zwickiLine

z-direction tensile test
Z-tensile test – tensile test in the sheet plane, internal bond test, paper industry

Testing of seal seams
zwickiLine materials testing machine, medical industry

Flexible Low-Force Testing for R&D

Integrated safety in accordance with the EC Machinery Directive
Powerful drives
High stiffness and precise crosshead guidance
Modern, high-quality load-frame design
Fast, convenient testing
Modern safety enclosure
Flexible equipment options
ZwickRoell Engineering—Made in Germany
Safety for the Entire Testing System
Tensile Tests on Foam - zwickiLine, Fmax 2.5 kN, with pneumatic grips. The tensile properties of a foam dumbbell specimen are tested.

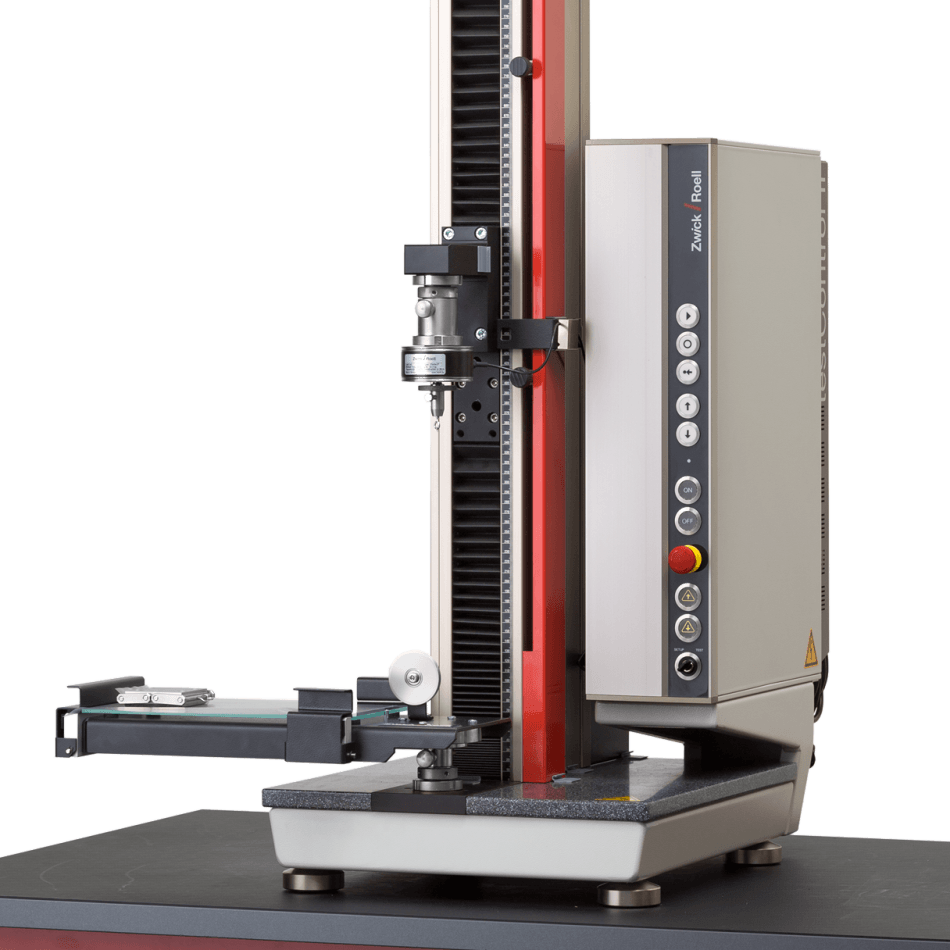

Testing the frictional behavior of plastic films - Fixture for testing the frictional behavior of plastic films to ISO 8295, ASTM D1894, ASTM D2534, TAPPI T549, TAPPI T664 su64 (and DIN 53375).

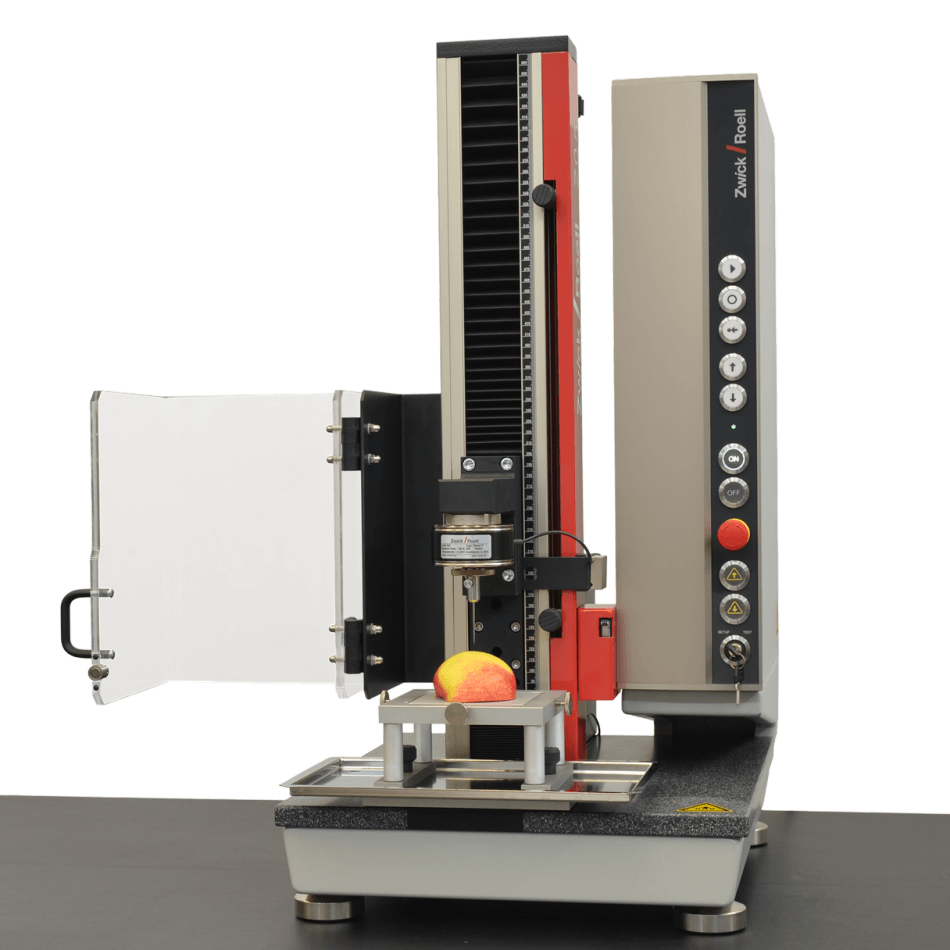

Puncture test on food - zwickiLine with safety guard to prevent the operator from accidentally reaching into the test area Developed especially for the testing of food; the fixture is also used to determine puncture resistance to DIN EN 14477, cannula test device, back extrusion cells, puncture needle, Warner-Bratzler shear test fixture, Kramer shear cell and Ottawa cell

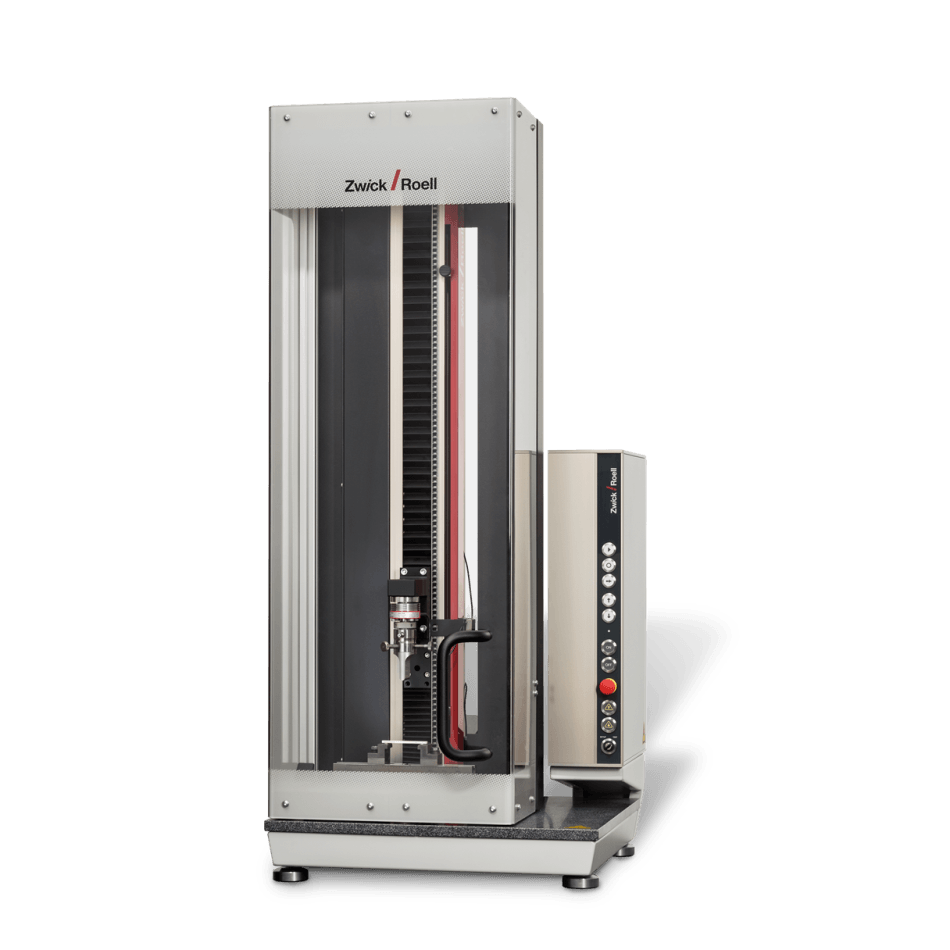

zwickiLine safety device - Protects the operator from flying specimen remains or other dangers; safety device 6 mm thick made of polycarbonate
