Advanced BSE Detection Capabilities of the TESCAN CLARA UHR-SEM

The BSE (Back Scattered Electron) image contrast differs depending on both the take-off angle and energy of backscattered electrons. This contrast change needs to be visualized as some information may remain hidden when using more conventional BSE detection systems.

The new TESCAN CLARA ultra-high-resolution scanning electron microscope (UHR-SEM), based on TESCAN’s BrightBeamTM technology, enables variable, filtered BSE detection. One of the features of the TESCAN CLARA’s BSE detection system is the electron filtering based on take-off angle which allows users to explore three different contrast mechanisms.

The TESCAN CLARA UHR-SEM is equipped, as standard, with three BSE detectors:

  1. Fully retractable in-chamber detector collecting the wide-angle electrons. This, wide-angle BSE signal, significantly highlights topographical contrast.
  2. In Beam Axial detector, collecting the narrow-angle electrons. The take-off trajectories of BSEs collected by the Axial Detector are, of course, close to the optical axis of the SEM column and as a result provide topography-free compositional contrast.
  3. Multidetector (BSE) collects the so called ‘mid-angle’ backscattered electrons. The unique capability of this detector is that areas which were hidden from the in-chamber BSE detector are now visible here, however, moderate topographical contrast of the sample is also maintained.

This application example presents the benefits of the angular filtration of backscattered electrons.

Images of the natural oxidation of the metal surface collected with different TESCAN CLARA BSE detectors. LE BSE (wide-angle), Multidetector (mid-angle), Axial (narrow-angle) and color-coded image where each angle is represented by a color.

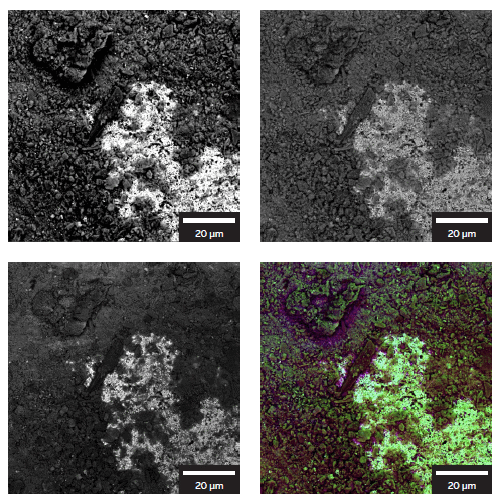

Fig 1. Images of the natural oxidation of the metal surface collected with different TESCAN CLARA BSE detectors. LE BSE (wide-angle), Multidetector (mid-angle), Axial (narrow-angle) and color-coded image where each angle is represented by a color.

Want to know more? Click here to read the full article.
