IS-Max™ Mass Flow Controller

Class I, Division 1 mass flow controllers are designed for use in hazardous locations where explosive gases are present. IS-Max is certified to ATEX, IECEx, and North American standards and is designed for CID1 and Zone 0 environments.

• Flow accuracy up to ± 0.5 % of the reading or ± 0.1 % of the whole scale, whichever is higher
• Technology for measuring laminar differential pressure (DP)
• Protection that is inherently safe: there is no need for explosion-proof housing or purge gases
• Measures temperature, pressure, mass flow, and volumetric flow
• IP66 enclosure
• Measuring and control range of 0.01–100 % (10,000:1 turndown)

Full Scale Flow Ranges

• 0.5 SCCM–250 SLPM

Operating Pressure Range

• 11.5–160 PSIA
• Optional 11.5–320 PSIA with ISMCQ

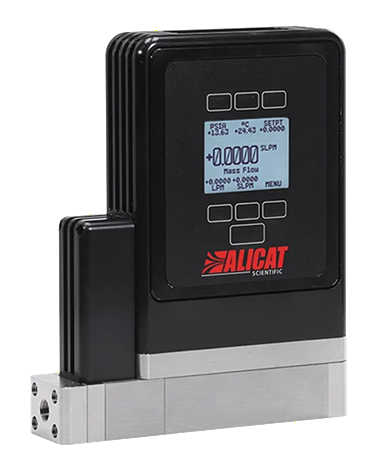

ISMC Series Flow Controller

For managing gas flow in environments where explosive gases are constantly present.

Image Credit: Alicat Scientific, Inc.

Integrated Valve

• 98 pre-loaded gas calibrations
• 11.5–160 PSIA (high-pressure option up to 320 PSIA)
• 0.5 SCCM–250 SLPM
• Flow accuracy of up to ± 0.5 % of the reading or ± 0.1 % of the whole scale, whichever is higher

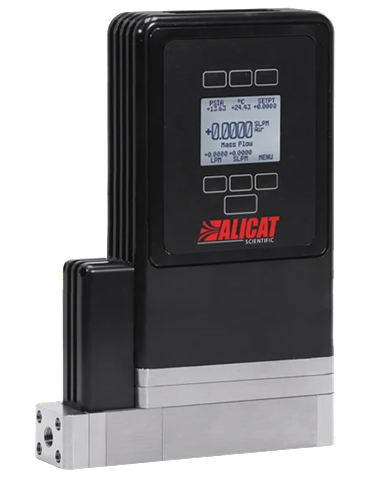

ISMCS Series Flow Controller

 Corrosion-resistant gas flow control in continuously explosive gas environments

Image Credit: Alicat Scientific, Inc.

Corrosion Resistant

• 128 pre-loaded gas calibrations, including corrosives
• 11.5–160 PSIA (high-pressure option to 320 PSIA)
• 0.5 SCCM–250 SLPM
• Precision of up to ± 0.4 % for reading and ± 0.2 % for full scale

ISMCW Whisper^™ Series Flow Controller

Controlling ultra-low pressure drop mass flow in continuously explosive gas environments

Image Credit: Alicat Scientific, Inc.

Minimum Drop in Pressure

• Mass flow controller
• 60 PSIA operating pressure
• Pre-loaded 98 gas calibrations
• 0.5 SCCM to 50 SLPM
• 0.7 PSID minimal pressure drop
• Accuracy as good as ± 0.6 % of reading or ± 0.1 % of full scale, whichever is higher

ISMCQ Series Flow Controller

Controlling high-pressure mass flow in continuously explosive gas environments

Image Credit: Alicat Scientific, Inc.

Higher Pressure

• Mass flow controller
• 98 pre-loaded gas calibrations
• 11.5–320 PSIA operating pressure
• 10 SCCM–2 SLPM
• As accurate as ± 0.6 % of the reading or ± 0.1 % of the whole scale, whichever is higher

Build Options

Source: Alicat Scientific, Inc.
