3575 Transverse (Diametral) Extensometers for Diametral Strain Measurement

Epsilon’s 3575 extensometers are designed for general purpose transverse or diametral strain measurement on axially loaded specimens. This model can be used simultaneously with the Model 3542 axial extensometer.

The 3575 extensometers are self-supporting on the test sample, and will work on any diameter or width specimen from 0 to 1” (25 mm). They are typically used for the measurement of Poisson’s ratio, for transverse measurement with anisotropic materials like many composites, and for sheet metal testing such as r-value determination. Frequently, these extensometers are used simultaneously with Epsilon’s axial extensometers.

The units can be easily clipped onto the sample and are held in place with an integral spring. Rounded contact edges helps to maintain the position on the specimen. They are all high accuracy strain gaged units and are compatible with a most test controllers.

The Model 3575 extensometers are strain gaged devices, which makes them compatible with any electronics designed for strain gaged transducers. Quite often these extensometers are connected to a test machine controller. The signal conditioning electronics for the extensometer is usually included with the test machine controller or may often be added.

In this case, the extensometer in delivered with the right wiring and connector to plug directly into the electronics. Epsilon can offer a range of solutions for systems that do not have the required electronics. This enables the extensometer output to be connected to chart recorders, data acquisition boards or other equipment.

Epsilon extensometers are compatible with almost every brand of test equipment and can be supplied with the right connector to plug in directly, or come with a separate conditioner and amplifier.

The company has 20+ years history of service for the materials testing community and will be there to stand behind their products when the user’s critical application requires it.

Epsilon provide 36 Extensometer models in thousands of variations, and their focus on helping customers has resulted in the development of models to cover almost any test method.

Features

The key features of the Model 3575 extensometers are as follows:

  • May be left on through specimen failure
  • All models will measure both positive and negative displacements
  • Full bridge, 350 ohm strain gaged design for compatibility with virtually any test system
  • All standard units have linearity readings of 0.20% or better
  • Rugged, dual flexure design for strength and improved performance. Much stronger than single flexure designs, this also allows cyclic testing at higher frequencies
  • Suitable for measuring Poisson’s ratio per ASTM E132 with most materials and specimens
  • High quality foam lined case and spare set of tool steel knife edges are provided
  • Self-supporting on the specimen
  • Easy to mount, with integral springs to keep the extensometer on the sample

Specifications

The key specifications of the Model 3575 extensometers are as follows:

  • Excitation: 5 to 10 VDC recommended, 12 VDC or VAC maximum
  • Linearity: ≤0.20% of full scale measuring range, depending on model
  • Output: 2 to 4 mV/V, nominal, depending on model
  • Specimen size: Works with samples up to 25 mm (1”) width or diameter
  • Temperature range: Standard (-ST) is -40 °C to +100 °C (-40 °F to 210 °F)
  • Cable: Integral, ultra-flexible cable, 2.5 m (8 ft) standard

Options

The following options are available with the Model 3575 extensometers:

  • Connectors to interface to almost any brand test equipment
  • Specialty knife edges
  • Shunt calibration

3575 Transverse (Diametral) Extensometers for Diametral Strain Measurement

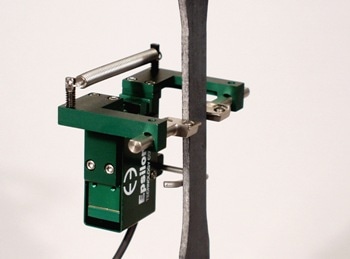

Transverse_extensometer_with_reinforced_plastic_specimen-Model_3575
Transverse_and_axial_extensometers_for_measuring_Poissons_ratio-Model_3575_and_Model_3542
Transverse_extensometer_with_long_travel_for_compliant_materials_mounted_on_plastic_tensile_specimen-Model_3575-uncrop

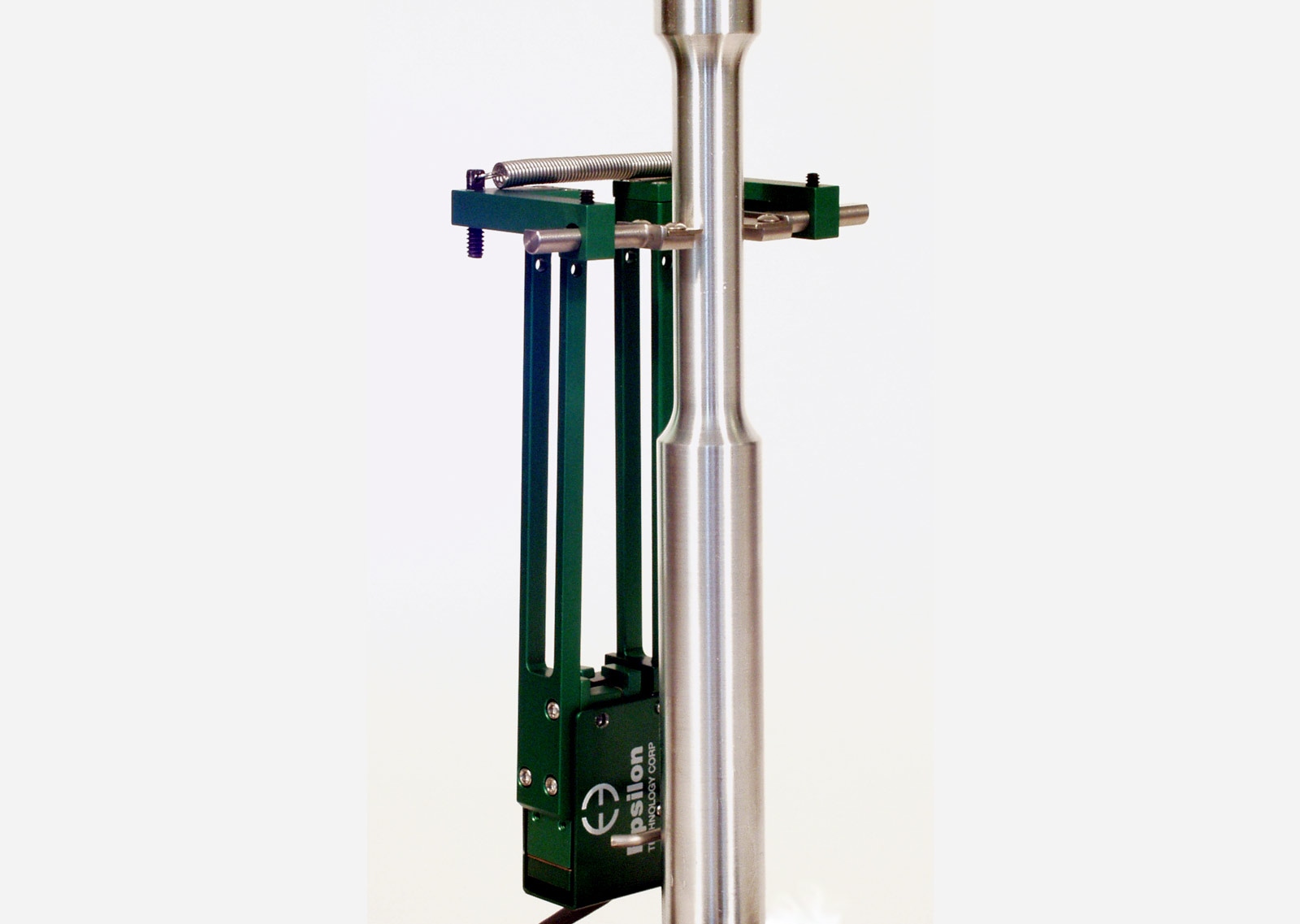

Transverse_extensometer_with_long_travel-Model_3575-uncrop
