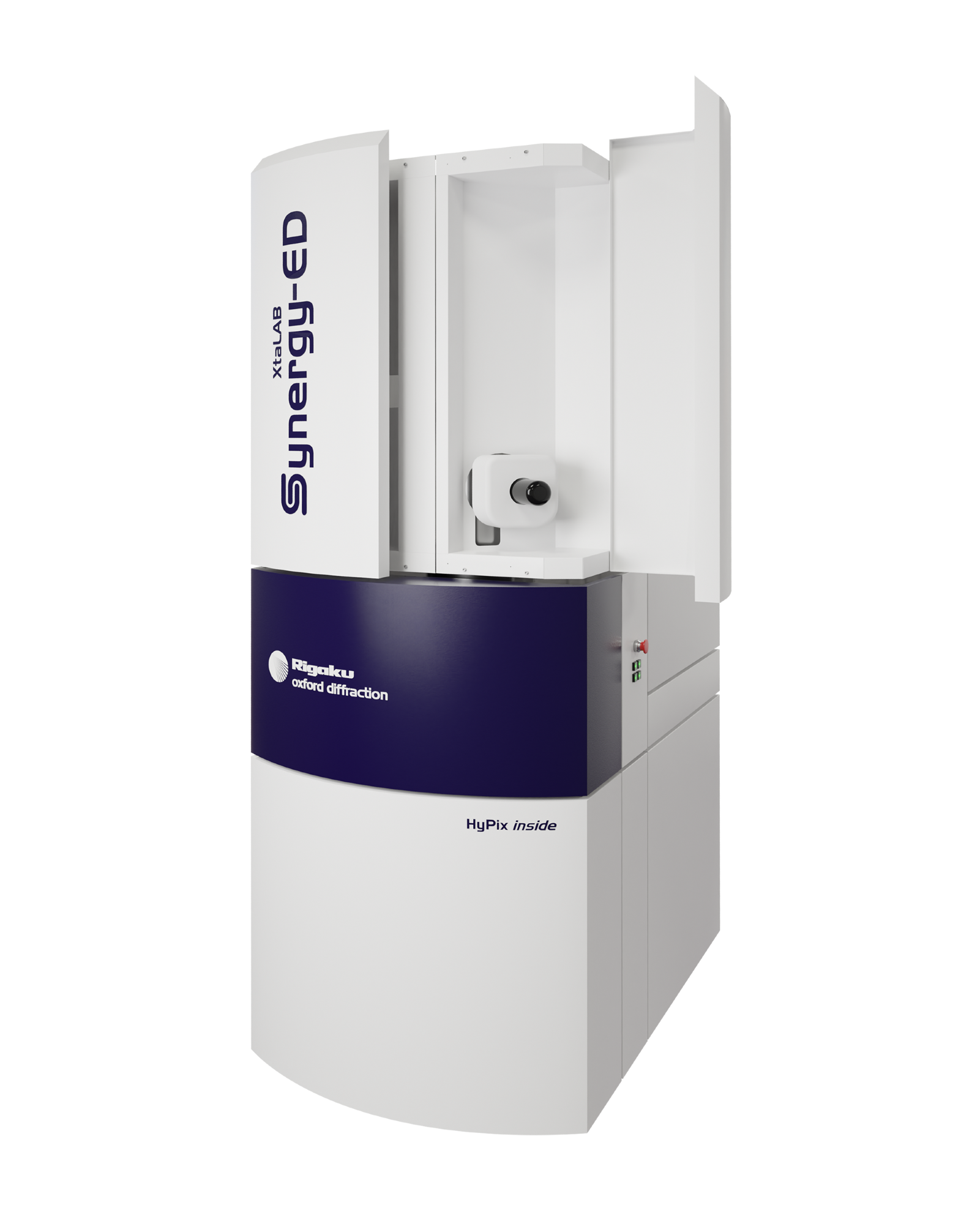

XtaLAB Synergy-ED – Electron Diffractometer

  • Directly determine 3D molecular structures of submicron crystals for the first time
  • Rigaku’s high-speed, high-sensitivity photon-counting detector - HyPix-ED
  • JEOL’s expertise in generation and control of stable electron beams – 200 kV electron source and optics
  • Rigaku’s powerful single crystal analysis software – CrysAlisPro-ED

The XtaLAB Synergy-ED is the world’s first 3DED/microED (3D Electron Diffraction/micro Electron Diffraction) system and the successful culmination of a joint development project between Rigaku and JEOL. 3DED/microED allows crystallographers to probe the structure of crystals and nanocrystals as small as tens of nanometers, opening up many new possibilities. This new capability allows you to go beyond the limitations of X-ray diffraction (XRD), which requires samples greater them 1 µm.

3DED/microED is an excellent complementary technique to XRD, and the compact design of the XtaLAB Synergy-ED allows it to be easily located in laboratories alongside these instruments. Crystallographers familiar with Rigaku diffractometers running CrysAlisPRO will be able to adapt to the CrysAlisPro-ED interface very quickly, as it is based on the same intuitive platform.

The fully integrated system incorporates a seamless workflow from data collection to structure determination of three-dimensional molecular structures. AutoChem, which is fully integrated into CrysAlisPRO, performs fast, fully automated structure solution and refinement during data collection, optimizing your productivity.

3DED/microED allows direct structural determination of sub-micron-sized crystals that could only previously be postulated by techniques such as NMR. As an emerging technique, there is scope for the generation of many publications using the XtaLAB Synergy-ED.
