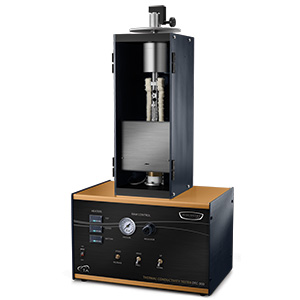

DTC-300 Thermal Conductivity Meter from TA Instruments

TA Instruments’ DTC-300 thermal conductivity meter is designed specifically to determine the thermal conductivity of a wide range of materials, such as rubbers, glasses, polymers, composites, ceramics, certain metals, and other materials having low-to-medium thermal conductivity.

The DTC-300 requires only a small amount of test sample. Liquids, pastes, and other non-solids can be tested with special containers. In addition, thin films can be accurately tested by means of a multi-layer method. All tests comply with the ASTM E1530 Standard.

For sub-ambient testing, the DTC-300 thermal conductivity meter comes with an airtight compartment to keep the atmosphere moisture-free with dry air purge. A standard test takes 45 to 60 minutes to complete at a specific temperature. The system is provided with three operating range modules, with each covering a different thermal resistance region. The modules are also field-exchangeable.

Key Features

The main features of the DTC-300 thermal conductivity meter are:

  • Guarded heat flow meter
  • -20°C to 300°C
  • Fully computerized operation
  • Solids, liquids, and pastes can be tested
  • Filled polymers
  • Flexible temperature and specimen options
  • Operating range modules are field-exchangeable
  • Each system includes Windows™ operating and data analysis software
  • Factory calibrated using samples of known thermal resistance
  • Tests conform to ASTM E1530 Standard
