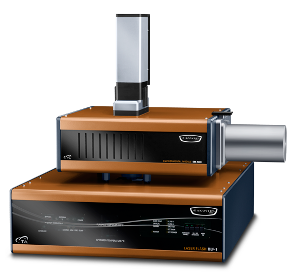

DLF-1200 Laser Flash Analysis: Flash Diffusivity Systems

TA Instruments provides a range of tools for measuring thermal diffusivity up to 1200°C using the flash method. This method enables the measurement of specific heat capacity and thermal conductivity of materials with numerous thermal properties.

All the tools from TA Instruments are provided with multi-specimen testing capability, thereby enabling improved productivity and enhanced specific heat capacity measurements. The tools are capable of full time pulse mapping, precision optics, and current data analysis, thus making the Discovery Flash platform a very precise system.

The Discovery Flash data analysis software consists of current methods for heat loss corrections. The Clark and Taylor method is used as the most precise basic purpose procedure for regulating thermal diffusivity based on the radiation heat losses, finite pulse width, and non-isothermal local sample conditions. There are more than 20 different analysis models and correction programs integrated into the software, thus providing maximum precision for all types of materials.

Available models include:

  • Clark and Taylor
  • Moment
  • Degiovanni
  • Cowan
  • Koski
  • Least Squares
  • Logarithmic
  • Heckman
  • Parker

The detector used in the tools is designed specifically to suit the operating temperature range of the Environmental Module. In the case of moderate-to-high-temperature measurements, an indium antimonide (InSb) IR detector is used. The IR detector can be cooled with liquid nitrogen so as to ensure stable output and high repeatability.

Key Features

The main features of TA Instruments’ flash diffusivity systems are as follows:

  • Unparalleled precision of pulse-shape and pulse-width correction calculations and the most accurate determination of the t0
  • High sensitivity. quick response sensors
  • Precise measurement of transient temperature changes
  • Detector is factory-aligned to the sample and does not involve user exchange or alignment
  • Flash method is widely accepted and is documented in ASTM E2585, ASTM E1461, DIN EN821, DIN 30905,
