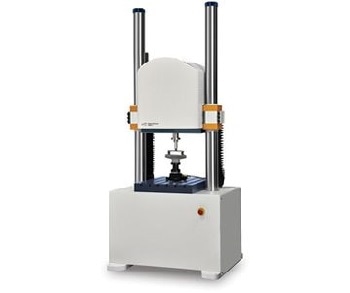

ElectroForce 3500 Mechanical Test Instrument

The ElectroForce 3500 test instruments are available in three base system configurations. The 3510 instrument, rated at 7.5 kN, is configured with the linear motor installed in the upper crosshead, making it well-suited for applications requiring a temperature-controlled bath. The 3520 instrument is rated at 7.5 kN, and the linear motor is installed in the lower baseplate. The 3550 instrument is a higher-force configuration rated at 15 kN.


  • Versatility for a variety of mechanical fatigue and dynamic characterization tests
  • Can perform tests over a wide frequency range
  • Air-cooled, clean-room compatible and quiet operation
  • Optional 49 Nm or 70 Nm torsional motor is available for multi-axial test applications

Typical Test Applications for the ElectroForce 3550 Test Instrument

  • Engineered materials, including reinforced plastics and composites
  • Automotive and aerospace components
  • Elastomeric components and materials
  • Consumer products, including sports equipment, household items and electronics

Advantages and Benefits of the ElectroForce 3550 Test Instrument

  • Versatility for a variety of mechanical fatigue and dynamic characterization tests
  • The linear motor subsystem is powered from a standard electrical outlet, requiring no additional infrastructure
  • The load frame is air-cooled, clean-room compatible and provides quiet operation in a compact, space-saving package
  • The ElectroForce linear actuator uses direct electromagnetic conversion to apply force, and features a proprietary design to provide greater acceleration, higher frequencies and high velocities
  • Optional torsional motors are available for multiaxial test applications

General Specifications

  • 15 kN (3372 lb) dynamic force capability
  • 50 mm (2 in) displacement range
  • Maximum test space height 1000 mm (39 in)
  • Test space width 457 mm (18 in)
  • 208 - 230 V three phase power
