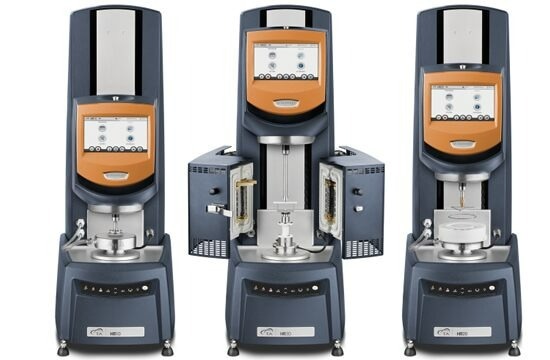

Discovery Hybrid Rheometer (DHR) with Patented Drag Cup Motor

The Discovery Hybrid Rheometer (DHR) from TA Instruments is an advanced system that has excellent performance specification and provides unparalleled direct stress control, direct strain control, and normal force measurement precision.

The DHR features a new hybrid technology that integrates a patented magnetic bearing, drag cup motor, patent-pending optical encoder dual-reader, force rebalance transducer (FRT), and true position sensor (TPS) into a single-head rheometer.

The optical encoder dual-reader offers excellent resolution of better than 2 nanoradians and at the same time improves phase resolution and eliminates drift. Second-generation magnetic thrust bearing can measure down to 0.5nN.m of torque. It is rugged and not susceptible to contamination. High-resolution linear position sensor makes real-time gap corrections for movement caused by thermal expansion.

In addition, the DHR system features the popular TA innovations such as Smart Swap™ temperature systems and patented Smart Swap™ geometries.

Key Features

The main features of the Discovery Hybrid Rheometer are as follows:

  • Improved low torque performance and stability
  • Precise strain and phase angle data
  • Superior normal and axial force performance
  • Stable and precise gap measurements at all times
  • Smart Swap™ geometries
  • Smart Swap™ temperature systems and options
  • Color display
  • Single-piece casting and liner slide
  • Wide range of accessories available
Explore SmartSwap™ for the Discovery Hybrid Rheometer!
