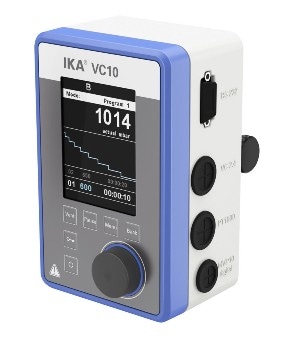

IKA Vacuum - VC 10 Vacuum Controller

The IKA Vacuum VC 10 Vacuum Controller offers two-point calibration of multiple vacuum sources. The instrument comes equipped with a chemo resistant ceramic pressure sensor as standard; and a high-resolution TFT display designed for easy, intuitive navigation and operation. The unit’s ventilation valve continues to operate even during a power shortage, ensuring that the vacuum chamber remains aerated.

Up to 10 programs can be saved alongside up to 10 pressure/time sequences, even allowing users to save the last experiment run. As well as these stored patterns, the IKA Vacuum VC 10 also offers a comprehensive manual mode. Experiments can be managed using the labworldsoft® software (connected via a PC and RS 232 interface), and the unit allows the connection of an external PT 1000 temperature sensor to measure application temperature.

A control knob is able to stop the controller in an emergency, as well as aerating the vacuum chamber. An inbuilt cleaning function helps ensure the longevity of valves, and this can be adjusted for each individual application. The IKA Vacuum VC 10 can be controlled in a variety of languages, selectable via a menu. Furthermore, the device’s firmware can be updated via USB with the freely included Firmware Update Tool.

Technical Data

  • Depth: 110 mm
  • Power input: 24W
  • Input pressure max.: 1050 mbar
  • Power input standby: 2 W
  • Temperature measuring range max.: 200 °C
  • Temperature measurement resolution : 1 K
  • Height: 150 mm
  • Time setting min.: 1 s
  • Temperature measuring range min.: -10 °C
  • DC Voltage: 24 V=
  • Weight: 1.5 kg
  • Width: 95 mm
  • Time setting max.: 6000 min
  • Current consumption: 1000 mA
  • Accuracy of temperature measurement: ±1 K
  • Input pressure min.: 1mbar
  • Measurement uncertainty: 1 mbar
  • Resolution pressure: 1 mbar
  • Medium temperature (gas) min.: 5 °C
  • Medium temperature (gas) max.: 40 °C
  • Fastening diameter: 16 mm
  • Connection diameter venting side: 8 mm
  • Control range max.: 1100 mbar
  • Control range min.: 1mbar
  • Connection diameter pressure side: 8 mm
  • Connection diameter suction side: 8 mm
  • Pressure max. for pressure sensor: 1.6 bar
  • Measurement range (absolute) min.: 1 mbar
  • Measurement range (absolute) max.: 1100 mbar
  • Frequency: 50/60 Hz
  • Voltage: 100 – 240 V
  • Condensate trap: no
  • Temperature unit: °C / °F
  • Emission condenser: no
  • Material in contact with medium: Al2O3, PTFE, FPM, PPS
  • Vacuum sensor type: ceramic Al2O3
  • Two-point control: yes
  • explosion proofed: no
  • clean room qualified: no
  • Protection class according to DIN EN 60529: IP 20
  • Timer: yes
  • RS 232 interface: yes
  • Vacuum sensor: yes
  • Connection for ext. temperature sensor: PT1000
  • USB interface: yes
  • Boiling point detection: yes
  • Solvent library: yes
  • Vacuum speed control interface: MVP 10 digital
  • Two dot vacuum control interface: VC2.4
  • Fastening: stand / clamp
  • Permissible ambient temperature min.: 5 °C
  • Permissible relative humidity: 80%
  • Permissible ambient temperature max.: 40 °C
  • Pressure unit / scale: mbar, hPa, mmHg, Torr
  • Analog speed vacuum control: yes
  • Venting valve: yes
  • Gas ballast valve: no
  • housing material: PBT
  • Display: TFT
  • Vacuum valve: yes
  • Analog output: no
