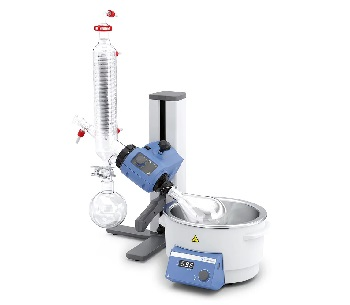

IKA Rotary Evaporators - RV 3 V-C

The IKA RV 3 Rotary Evaporator is an ideal entry-level evaporator with a multitude of uses in the biotechnology, pharmaceutical and chemical industrials. It is also suited for day-to-day use in research and development, manufacturing and quality assurance, plant construction and laboratories.

The transparent vertical coated condenser makes highly efficient use of the 1,500 cm² cooling surface thanks to the inclusion of specially designed glass guides.

Key Features

  • 4 liter heating bath for up to 100 °C
  • Efficient water heating bath with digital temperature display
  • Integrated carrying handles
  • Mechanical lift end-point safety stop
  • Integrated locking mechanism with a red indicator showing unlocked position of the vapor tube
  • Adjustable immersion angle
  • Fully compatible with the complete range of IKA RV 10 glassware
  • Stepless speed setting, including speed display and dial control
  • Manual lift allows for precise positioning of the glassware
  • One-handed manual lift handling, suitable for left or right-handed users
  • Speed range of 5 - 300 min-1
  • Low device voltage (24V), ensuring user safety
  • Flask clamping mechanism with integrated push-off function, allowing evaporation flasks to be exchanged quickly and easily
  • High-efficiency condenser with 1,500 cm² cooling surface
  • A compact unit with low space requirements3

Technical Data

  • Width: 440 mm
  • Speed max.: 300 rpm
  • Cooling surface: 1500 cm2
  • Power input: 1400 W
  • Heating temperature min.: Room temp.°C
  • Depth: 330 mm
  • Speed tolerance set rotation speed < 100 rpm: 1± rpm
  • Heating temperature max.: 90 °C
  • Weight: 13.5 kg
  • Height: 530 mm
  • Stroke: 150 mm
  • Speed tolerance set rotation speed > 100 rpm: 1±%
  • Speed min.: 20 rpm
  • Frequency: 50/60 Hz
  • Type of cooling: vertical
  • Motor principle: DC
  • USB interface: no
  • Analog output: no
  • RS 232 interface: no
  • Protection class according to DIN EN 60529: IP 20
  • Reversible direction of rotation : no
  • Permissible relative humidity: 80%
  • Voltage: 100 – 240 V
  • Permissible ambient temperature max.: 40 °C
  • Permissible ambient temperature min.: 5 °C
  • Lift: manual
  • Timer: no
