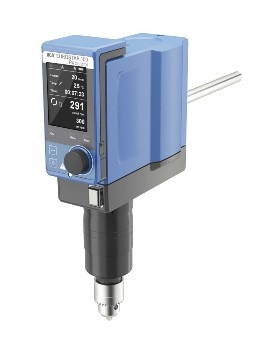

IKA Overhead Stirrers: EUROSTAR 100 Control P4

The IKA EUROSTAR 100 Control P4 is an overhead stirrer designed for a wide range of applications.

Able to stir a variety of substances, its 142 W motor rating output delivers stepless speed control and a stirring speed of between 10 and 300 rpm.

The unit’s compact size makes it ideal for even the most busy environments, while an inbuilt temperature display shows accurate temperature measurement data up to a maximum of +350 °C.

Technical Data

  • Extension arm length: 220 mm
  • Extension arm diameter: 16 mm
  • Deviation of speed measurement n < 300 rpm: 3± rpm
  • Width: 86 mm
  • Motor rating input: 174 W
  • Stirring quantity max. per stirring position (H2O): 100 l
  • Viscosity max.: 100000 mPas
  • Speed min.: 10 rpm
  • Chuck range max. diameter: 10 mm
  • Chuck range min. diameter: 0.5 mm
  • Setting accuracy speed: 1± rpm
  • Temperature measurement resolution: 0.1 K
  • Temperature measuring range max.: +350 °C
  • Motor rating output: 142 W
  • Time setting max.: 6000 min
  • deviation of torque measurement I: 30± Ncm
  • Nominal torque: 3.20 Nm
  • Height: 352 mm
  • Weight: 5.2 kg
  • Power input: 150 W
  • Torque max. at stirring shaft: 320 Ncm
  • Output max. at stirring shaft : 100 W
  • Limit deviation temperature sensor: ≤ ± (0.15 + 0.002xITI)K
  • Accuracy of temperature measurement: ±0.5 + tolerance PT1000 (DIN IEC 751 Class A)K
  • communication distance (depend onbuilding) max.: 150 m
  • Depth: 230 mm
  • Voltage: 230/115/100 V
  • Speed max.: 300 rpm
  • Time setting min.: 1 min
  • Temperature display: yes
  • Speed control: stepless
  • Connection for ext. temperature sensor: PT1000
  • Hollow shaft (push-through - when stopped): no
  • Motor principle: Brushless DC
  • Fastening on stand: extension arm
  • Stirring element fastening: chuck
  • Reversible direction of rotation : yes
  • Timer: yes
  • RS 232 interface: yes
  • USB interface: yes
  • Protection class according to DIN EN 60529: IP 40
  • housing material: alu-cast coating / thermoplastic polymer
  • clean room qualified: no
  • Permissible relative humidity: 80%
  • Permissible ambient temperature max.: 40 °C
  • Frequency: 50/60 Hz
  • Permissible ON time: 100%
  • Temperature measuring range min.: -10 °C
  • Permissible ambient temperature min.: 5 °C
  • Intermittent operation: yes
  • Speed display: TFT
  • explosion proofed: no
  • Torque display: yes
  • Torque measurement: trend
  • Timer display: TFT
  • Analog output: no
