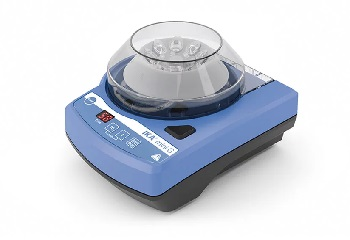

IKA Centrifuges: IKA Mini G

IKA’s Mini G is a mini-centrifuge design for all applications which do not require high speeds – for example cell separation and micro-filtrations.

This mini-centrifuge can be used for both PCR strips and PCR vessels. A transparent cover allows observation of the centrifuge at all times. Additionally, inbuilt safety mechanisms ensure that the centrifuge will only run when the lid is closed. The lid itself can be easily opened with the press of a button.

Key Features

  • Fixed speed of 6,000 rpm
  • Digital timer, adjustable from 1 to 99 minutes
  • Fast start up speed
  • Integrated quick stop feature
  • Quiet operation and compact design
  • Simple operation with integrated touch keypad
  • Rotor can be exchanged without the need for tools

Accessories Included

  • Rotor: 8 x 1.5 / 2 ml
  • Rotor: 4 x strip 8 x 0.2 ml
  • Adapter set: 8 x 0.5 ml
  • Adapter set: 8 x 0.4 ml
  • Adapter set: 8 x 0.2 ml

Technical Data

  • Weight: 1.4 kg
  • Current consumption: 500 mA
  • Motor rating input: 12 W
  • Speed max.: 6000 rpm
  • Motor rating output: 8 W
  • DC Voltage: 24 V=
  • Height: 105 mm
  • Speed min.: 6000 rpm
  • Speed deviation: 5%
  • Width: 155 mm
  • Depth: 175 mm
  • Power input: 12 W
  • Kinetic energy max.: 20 Nm
  • Centrifugal acceleration: 2000 G
  • Power-ON time: 99 min
  • Pemitted density: 1.2 kg/dm3
  • Permissible ON time: 100%
  • Frequency: 50/60 Hz
  • Protection class according to DIN EN 60529: IP 30
  • Reversible direction of rotation : no
  • Capacity: 8x 2,0 ml
  • Timer display: 7 segment LED
  • Timer: yes
  • Analog output: no
  • USB interface: no
  • Unbalance sensor: no
  • Quick stop: yes
  • Permissible ambient temperature max.: 40 °C
  • Permissible relative humidity: 80%
  • Voltage: 100 – 240 V
  • Permissible ambient temperature min.: 5 °C
  • Protective cover: yes
  • Cover opening: automatic
  • Rotor exchange: without tool
  • RS 232 interface: no
