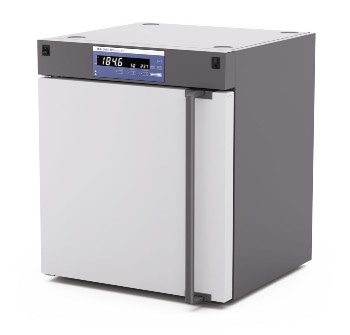

IKA Drying Ovens: IKA Oven 125 Basic Dry

The IKA Oven 125 Basic Dry is a universal oven designed for drying, tempering, aging and heating applications in a laboratory setting.

The unit is suitable for use in a variety of settings including industry, academic institutions, quality control, research and the scientific sector.

The IKA Oven 125 Basic Dry offers fast heat up times and precision temperature control that guarantee reproducible results. Specially designed odorless insulation also helps to reduce operating costs.

The oven can be controlled by USB, with test parameters able to be recorded for further analyses as required.

Key Features:

  • Temperature range of RT + 5 °C to 250 °C
  • Capacity of 125 liters
  • Adjustable temperature limit
  • Electronically adjustable ventilation system
  • Clear display with integrated control menu
  • Key lock functionality
  • Adjustable timer

Technical Data

  • Operating area inner chamber: 550 x 525 x 450 mm
  • Total volume inner chamber: 125l
  • Working temperature min. : room temp. +5 °C
  • Time setting max.: 144000 min
  • Heat output: 2400 W
  • Temperature constancy in medium: 0.3± K
  • Adjustment and display resolution: 0.1 K
  • Load for one tray max.: 30 kg
  • Power input: 2450 W
  • Voltage: 220 - 240/115/100 V
  • Height: 825 mm
  • Depth: 650 mm
  • Width: 700 mm
  • Power input standby: 2 W
  • Working temperature max. : 250 °C
  • Timer display: 7 segment LED
  • Temperature display: yes
  • USB interface: yes
  • Protection class according to DIN EN 60529: IP 20
  • Analog output: no
  • Timer: yes
  • Number of trays max.: 6
  • Permissible ambient temperature min.: 5 °C
  • Time setting min.: 1min
  • Weight: 55 kg
  • Frequency: 50/60 Hz
  • Permissible relative humidity: 80%
  • Permissible ambient temperature max.: 40 °C
  • RS 232 interface: no
