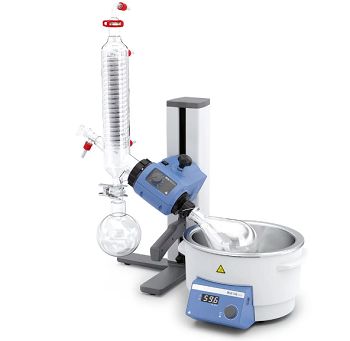

Beginner Rotary Evaporator – RV 3 V Evaporator

The RV 3 V from IKA is the ideal entry-level model for manual and standard distillation requirements. The RV 3 V with the latest 4 liter heating bath can be used at temperatures of up to 90 ÅãC.


Technical Data
Speed range [rpm] 20 - 300
Speed tolerance set rotation speed < 100 rpm [±rpm] 1
Speed tolerance set rotation speed > 100 rpm [±%] 1
Lift manual
Stroke [mm] 150
Dimensions (W x H x D) [mm] 440 x 530 x 330
Weight [kg] 8
Permissible ambient temperature [°C] 5 - 40
Permissible relative humidity [%] 80
Protection class according to DIN EN 60529 IP 20
Voltage [V] 100 - 240
Frequency [Hz] 50/60
Power input [W] 75
Ident. No. 0010003324
