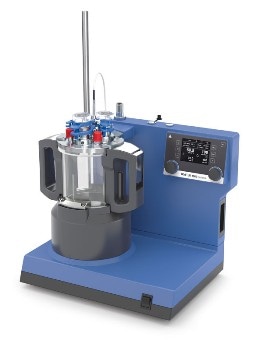

IKA Laboratory Reactors: LR 1000 Control Package

The IKA LR 1000 Control is a cost efficient modular laboratory reactor, designed for use at the laboratory scale. It has been developed to optimize chemical reaction processes, mixing, dispersing and homogenization applications. The system offers adaptability and flexibility, and can be adjusted quickly and easily to suit a wide range of specific requirements and applications.

The reactor itself is designed for the pharmaceutical and cosmetic industries and their unique applications requirements. It is able to handle temperatures as high as 120 °C for the medium itself while the heating source (found at the bottom of the vessel) can be controlled accordingly to reach the set temperature inside the medium. The package includes a PT 100.30 temperature sensor and LR 1000.61 receptacle.

The package boasts a range of versatile and intuitive features including an integrated pH sensor connection. The unit’s display interface allows all process-relevant data to be shown on a PC, as well as saving the data into storage and controlling the reactor itself. Additional software accessories allow for further adaptation of the overall system and related processes.

Key Features

  • The only metals in contact with medium are stainless steel (ALSI 316 L), FFKM, PTFE, PEEK and borosilicate glass 3.3.
  • The system boasts a large, easy to read TFT display for easy navigation and better image quality.
  • An integrated weighing function is included.
  • Torque trend measurement can be used to indicate changes in product viscosity.
  • An integrated pH sensor connection is included.
  • RS 232 and USB interfaces are available, meaning the unit can operate with the laboratory software labworldsoft®.
  • The standard joint fittings on the lid are: 2 x NS 29, 2x NS 14, 2 x GL 14. These allow flexible adaptation of further equipment.
  • The system is expandable for use with the ULTRA-TURRAX® T 25 digital.
  • A vacuum valve is included with the delivery.
  • An anchor stirrer with PTFE scrapers is also included.
  • Connections are available to attach a cooling source to the back of the unit.
  • The unit includes a manually adjustable safety circuit.
  • The unit also includes an integrated safety shutdown, activated when the vessel or lid is removed from the base.

Technical Data

  • Viscosity max.: 100000 mPas
  • Speed max.: 150 rpm
  • Support rod diameter (with integrated fastening on stand): 16 mm
  • Nominal torque: 3 Nm
  • Working temperature max. : 120 °C
  • Attainable vacuum: 25 mbar
  • Speed min.: 10 rpm
  • Heat output: 1000 W
  • Speed min (adjustable): 10 rpm
  • Permissible ON time: 100%
  • Temperature measurement resolution : 0.1 K
  • Heat control accuracy of medium with sensor: 0.2±K
  • Useable volume max.: 1000 ml
  • Weight: 16 kg
  • Cooling medium temperature min.: 3 °C
  • Cooling medium permissible operating pressure: 1 bar
  • Height: 360 mm
  • Depth: 295 mm
  • Power input: 1200 W
  • Weighing range max.: 2000 g
  • Voltage: 230/115 V
  • Weighing resolution: 1 g
  • Width: 443 mm
  • Useable volume without disperser tool min. : 500 ml
  • Adjustable safety circuit, upper temperature value: 225 °C
  • Speed deviation: 5± rpm
  • Adjustable safety circuit, lower temperature value: 47 °C
  • Adjustable safety circuit, upper temperature value deviation: 20± K
  • Adjustable safety circuit, lower temperature value deviation: 10± K
  • Set temperature resolution: 1± K
  • Heating temperature max.: 180 °C
  • Safety cutout: yes
  • Display for operation with ext. sensor: yes
  • Reversible direction of rotation : no
  • Stirring element fastening: special output shaft
  • Torque display: yes
  • Speed display: TFT
  • Type of cooling: flow
  • Speed control: 1 RPM steps
  • RS 232 interface: yes
  • Timer: yes
  • Protection class according to DIN EN 60529: IP 21
  • USB interface: yes
  • Connection for ext. temperature sensor: PT 100
  • Temperature display: yes
  • Torque measurement: trend
  • Timer display: TFT
  • Material in contact with medium: AISI 316L, 1.4571, borosilicate glass 3.3, PTFE, PEEK, FFKM
  • pH value display: TFT
  • Permissible ambient temperature min.: 5 °C
  • Permissible ambient temperature max.: 40 °C
  • Frequency: 50/60 Hz
  • Permissible relative humidity: 80%
  • pH meter interface: yes
  • Reactor vessel openings (units/standard): 2x NS 29/32, 2x NS 14/23 & 2x GL 14
  • Safety temperature sensor: PT1000
  • Working temperature sensor: PT 100
  • Working temperature display: TFT
  • Safety temperature display: TFT
  • Heat control: TFT
  • Analog output: no
