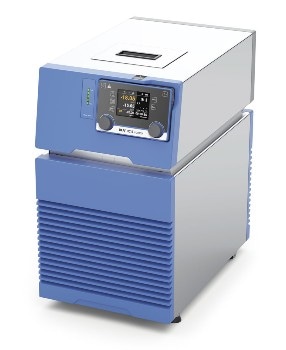

IKA Temperature Control: RC 5 Control

IKA’s RC 5 Control is a powerful recirculating chiller, designed to provide efficient cooling of external applications up to -30 °C.

The chiller is not only energy-efficient, but it is operated with an eco-friendly refrigerant and is able to reach a high power density. This efficiency results in a comparatively small working space, ideal for labs where bench space is at a premium.

Indirect, continuous adjustment of the maximum pressure and flow rate is possible due to the speed-controlled PEEK pump. The PT 100 temperature sensor (part of the delivery) offers outstanding temperature stability of around ± 0,1 K meaning that the RC 5 can perform with even the most sophisticated applications.

The RC 5 can be operated safely and conveniently from anywhere in the lab with the Wireless Controller (WiCo). Processes can be simplified and automated using a series of 10 freely programmable temperature ramps, each one able to accommodate 10 steps.

The unit’s isolated 7 liter bath has an integrated hopper and drain valve to ensure clean and safe handling of the thermofluid. It is possible to attach a hose to the bath, allowing this to be safely emptied without direct contact with the thermofluid itself.

The cooling unit’s air filter can be accessed for cleaning via an easy-to-open front flap.

Key Features

  • Speed-controlled refrigeration system with 1,400 W cooling capacity (at 20 °C)
  • Uses natural thermofluid R290
  • Designed for cooling applications up to -30 °C - RT
  • Offers an extended operating temperature range up to 80 °C
  • Digital level indicator
  • Excellent temperature stability of about ± 0,1 K (at -10 °C)
  • Speed-controlled pump made of PEEK: (0,6 bar; 31 liters per minute)

Additional Benefits

  • Operating mode D (confirmation mode)
  • Signal alert if a set point is reached
  • Easy to use timer/counter
  • Integrated degassing function

Interfaces

  • Available connection socket for an external PT 100 temperature sensor such as the PT 100.30 Lemo connector
  • Connection of magnetic valves is possible (Multi IO)
  • Alarm contact (Multi IO)
  • Connector for standby contact input (Multi IO)
  • RS 232 and USB connectivity

Technical Data

  • Operating temperature max. (with external heating): 80 °C
  • Working temperature max.: Room temp.°C
  • Temperature stability DIN 12876: 0.1± K
  • Working temperature min.: -30 °C
  • Operating temperature min.: -30 °C
  • Pressure pump (suction side) (0 liter flow): 0.45bar
  • Flow rate max. (0 bar back pressure): 31l/min
  • Permissible ambient temperature max.: 32 °C
  • Power input: 1100 W
  • Display resolution: 0.01K
  • Pump pressure max. (0 liters discharge flow): 0.61 bar
  • Voltage: 230/100 – 115 V
  • Filling volume max.: 7.0l
  • Cooling capacity (@10 °C): 950 W
  • Cooling capacity (@20 °C): 1200 W
  • Cooling capacity (@0 °C): 650 W
  • Cooling capacity (@-10 °C): 450 W
  • Cooling capacity (@-20 °C): 200 W
  • Weight: 37.8 kg
  • Height: 546 mm
  • Filling volume min.: 5.0l
  • Cooling agent: R290
  • Cooling agent quantity: 90 g
  • Cooling agent pressure max.: 21 bar
  • Width: 310 mm
  • Depth: 490 mm
  • Warning function insufficient temperature: no
  • Warning function excess temperature: yes
  • Pump type: pressure pump
  • Technical data complies with the standard: DIN 12876
  • Temperature control: PT 100
  • Warning function optical: yes
  • Display for operation with ext. sensor: yes
  • Protection class according to DIN EN 60529: IP 21
  • USB interface: yes
  • Temperature display: yes
  • Connection for ext. temperature sensor: PT 100
  • Working temperature sensor: PT 100
  • Working temperature display: TFT
  • Permissible ambient temperature min.: 5 °C
  • Permissible relative humidity: 80%
  • Frequency: 50/60 Hz
  • Permissible ON time: 100%
  • Appliance type: Recirculating Chiller
  • Pump connection: M16x1
  • Warning function acoustic: yes
  • Sub-level protection: yes
  • Pump capacity adjustable: yes
  • Calibration option: yes
  • RS 232 interface: yes
