A strong and distinctive TPMS telematics gateway, ATLAS integrates data collections from several sensor inputs within a vehicle. Tire pressure monitoring (TPMS) is the central component of the ATLAS system, and the telematics device can measure TPMS from both powered and unpowered sources, such as a trailer.
The hardware and ATLAS Insight, a user-friendly web application, are tightly integrated, making it simple to spot issues and take immediate corrective action.
The hardware unit could be a central repository for data gathered from machines or vehicles. To detect a range of different conditions, including refrigeration and door opening, several different sensors can be added.
With the help of GPS, the device can be traced and will sound an alert in case of a geo-fence breach, movement, or intrusion. All data is transmitted back to the ATLAS Insight Platform over the Internet.
ATLAS TPMS Telematics Family
Image Credit: Tough Tech Ltd
Image Credit: Tough Tech Ltd
ATLAS Griffin
- Designed with PressurePro Sensors to be used in the harshest conditions. Suitable for difficult tire requirements and OTR applications
- Using industrial valve sensors in more demanding situations
- Battery Backed—keeping an eye on when the trailer is not powered
- TPMS—tire monitoring under all conditions
- Tracking—always be aware of the location of the tailer
- Security—movement, geo-fence, door opening
- Engine Monitoring and Driver Behavior
- Axle Load Monitoring—monitoring load distribution
- Works with uncoupled trailers
- Elegant drop and hook
- User friendly app
- One dashboard for journey health
Image Credit: Tough Tech Ltd
Image Credit: Tough Tech Ltd
Image Credit: Tough Tech Ltd
ATLAS Pegasus
- Designed as a low-cost solution to the needs of commercial vehicles
- Using TPMS sensors on commercial valves
Additional Features
- Wheel Loss—notification with any wheel nuts loosening
- Hub Temperature—monitor for a rise in wheel/hub temp
Image Credit: Tough Tech Ltd

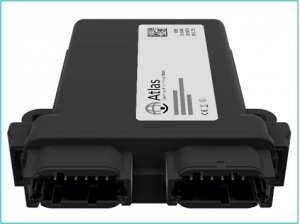

A TPMS Gateway built for global use on both 2G and LTE (4G) networks.
TPMS Telematics Gateway with Much More
The device features two CANbus ports that enable recording vehicle parameters or the distribution of acquired data to the vehicle, such as integrating onboard screens.
The telematics gateway can run in a trailer or other unpowered vehicle with the help of additional low-power and battery-backed modes. A web or mobile app can be used to create usage profiles. After the power has been restored, the device will be recharged.
Axle Load Monitoring and other features are supported through an additional serial interface(s).
Feature List
- 2× Serial Ports (RS-232 & TTL)
- Over-The-Air Updates managed
- ATLAS Insight Cloud Application for Fleet Management and Control
- Virtual Odometer—trip and idle time
- CANbus–Two (J1939) Interfaces
- TPMS—Tire Pressure Monitoring of all tires in real-time
- Internal Battery—measurement in an unpowered state
- GPS for vehicle tracking
- Security—Geo-Fence, Movement, Sensors
- Axle Load Monitoring—via external hardware
- Engine Management Diagnostics
- Driver Behavior
- BLE: Bluetooth SIG v5–mobile phone set-up and sensor I/P
- Accelerometer (Std) and Gyroscope (op)
- Multiple Inputs/Outputs (1-wire, digital)
- API available for back-office integration
- Mobile Phone App for local monitoring and set-up
- Wheel loss and hub and brake temperature Monitoring
- Elegant Drop and Hook and uncoupled operation
- Global Connectivity–2G/4G
Not Just TPMS–Telematics for Many Applications
ATLAS is a highly adaptable fleet application with access to a wide range of sensors and sensor inputs/outputs. It can be readily customized to keep track of special electronics that are added and is well-suited to a wide range of functions needed from a vehicle.
OEM integration can keep an eye on every component of a vehicle or machine and offer a base for excellent customer care. A branded ATLAS system could help users save months of effort and money spent on research and development.
Much More Than TPMS
Besides TPMS, ATLAS provides several capabilities, including tracking, security, and axle load monitoring.
