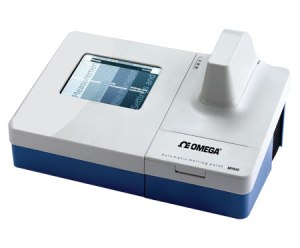

MPS40 Automatic Melting Point Tester

OMEGA’s MPS40 automatic melting point tester with touch screen display utilizes the latest technology in digital imaging to precisely detect the melting point of up to 3 samples concurrently.

The apparatus includes a 145mm (5.7") color VGA display where users can watch the melt in real time, or automatically save the melt video as an AVI file on the unit or via a PC to review it later.

The tester is fully programmable through the touch screen display. Users can set the plateau temperature and choose the ramp rate from 0.1 to 10°C (0.2 to 18°F) in 0.1°C (0.2°F) increments.

The system can also be operated in rapid melt mode where a quick scan of the full temperature range is done to provide an estimated melt temperature, and after that a method will be programmed automatically with the proper plateau temperature to enable a more accurate measurement.

Key Features

The main features of the MPS40 automatic melting point tester are:

  • Includes a 145mm (5.7") color VGA display
  • Fully programmable through touch screen display
  • Uses latest technology in digital imaging
  • Maximum temperature 400°C (752°F)
  • Integrated cooling 350 to 50°C (662 to 122°F) in 10 minutes
  • Innovative split design concept
  • Can be used in rapid melt mode
  • Melt side can be separated, allowing for maximum in footprint flexibility
  • Stores up to 200 result files with videos
  • Data can be easily transferred from the unit to a flash memory drive or PC using USB connectors
  • Slots to accommodate pre-prepared samples
  • Includes draw to accommodate unused melting point tubes
  • Handy glass cutter in the draw helps customers to accurately cut tubes in half
  • NIST calibration certificate displays individual serial numbers
