Fluorescence, Broadband and Bandpass Filters for OEM Spectrometer Manufacturers

Delta Optical Thin Film A/S is a global manufacturer of optical thin film coatings with over 50 years experience. Delta pioneered optical monitoring techniques for deposition control in the 1960s.

Delta Optical ensures a quick and effective design process with its advanced and unique optimization software to match the customer’s optical specifications.

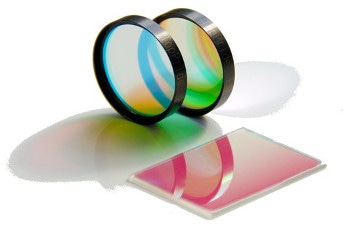

DELTA offers a series of filter sets designed for fluorescence applications. The filters are split into two series - value sets with good blocking, transmission and optical performance, and TopPride™ sets with additional performance benefits for demanding situations.

The filter sets are available in sets or as an excitation filter, dichroic or an emission filter for separate combinations.

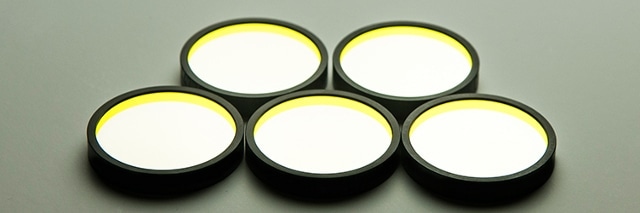

TopPride Fluorescence Filter Sets

Key Features

  • Ultra-hard-coated filters on single substrate construction.
  • No colored glass (minimal lens effect, extreme durability and minimal auto fluorescence).
  • Scratch/Dig optical surface specifications 60/40.
  • Typical transmission level of 95-98% (minimum 92%).
  • The upper limit of the blocking range is beyond 950 nm to better suit modern camera based microscopes.
  • TopPride™ dichroics can be made with low bending

Download the Brochure for More Information

Best Value Fluorescence Filter Sets

Key Features

  • Ultra-hard-coated filters
  • Scratch/dig optical surface specifications 80/50
  • Available in sets - or excitation filter, emission filter and dichroic separately, for individual combinations

Download the Brochure for More Information

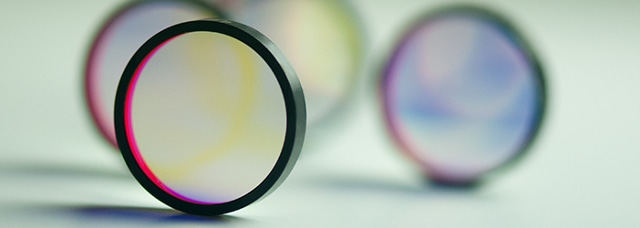

Delta Optical Thin Film has a range of bandpass filters that include broadband, narrow band, laser line and TopPride™. Available filter wavelengths range from 362 nm to 788 nm.

Key Features

  • Ultra-hard-coated filters
  • Scratch/dig optical surface specifications 60/40 (TopPride™), else 80/50
  • Standard dimension is ∅25 mm (with ring)
  • The data sheets show typical transmission curves for unpolarized light and an AOI=0°

Download the Brochure for More Information

Multiband Bandpass Filters

Delta's standard multiband bandpass filters have three filter bands at 425 nm, 527 nm, and 685 nm. The key features of these multiband filters are:

  • Ultra-hard-coated filters
  • Scratch/Dig optical surface specifications 80/50.
  • Standard dimension is ∅25 mm (with ring) - other dimensions on request.
  • The data sheets show typical transmission curves for unpolarized light and an AOI=0°.

Delta Optical Thin Film A/S is a global manufacturer of optical thin film coatings with over 50 years of experience. Optical monitoring techniques were pioneered by Delta to control deposition in the 1960s.

With its innovative and sophisticated optimization software to match the optical specifications of customers a fast and efficient design process is ensured by Delta.

Download the Brochure for More Information
