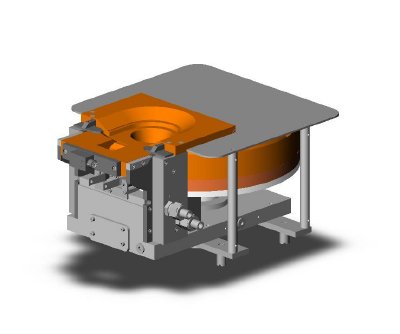

Model 295 Large Capacity Multi-Pocket E-Beam Sources

For applications requiring large evaporation materials inventory (e.g. multiple or thick layers, extended throw distances) the Model 295 Source provides a wide range of crucible sizes including 6x100cc, 16x15cc, 10x40cc, and a 1486cc trough. Available in 10Kw or 15Kw versions, with Arc-Suppression available as an option.

Key Features

  • Rotatable Hearth Is Removable For Easy Cleaning Or Changing Of Crucibles
  • 270° beam deflection (Hidden Filament)
  • Proprietary, patented water cooling design means longer crucible life and more consistent evaporation of material
  • Rugged, reliable construction
  • Designed for ease of use and maintainability
  • Permanent magnet for primary beam positioning to provide improved control of evaporation process
  • Durable emitter assembly with unique design for increased filament life and simple maintenance
  • Plug-in emitter assembly for easy filament replacement
  • Side or bottom crucible rotation drive
  • Integral rotation feedthrough on models 246/266/276/297 eliminates water to vacuum seal
