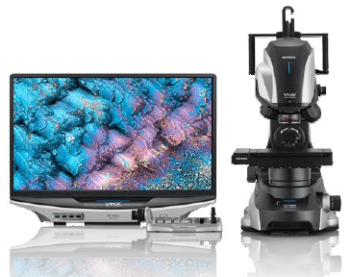

Image Capturing in 3D Measurement with the 4K Ultra-High Accuracy Microscope

The world’s first 4K Ultra-High Accuracy Microscope from KEYENCE offers users the chance to view, capture, and measure with an all-in-one system.

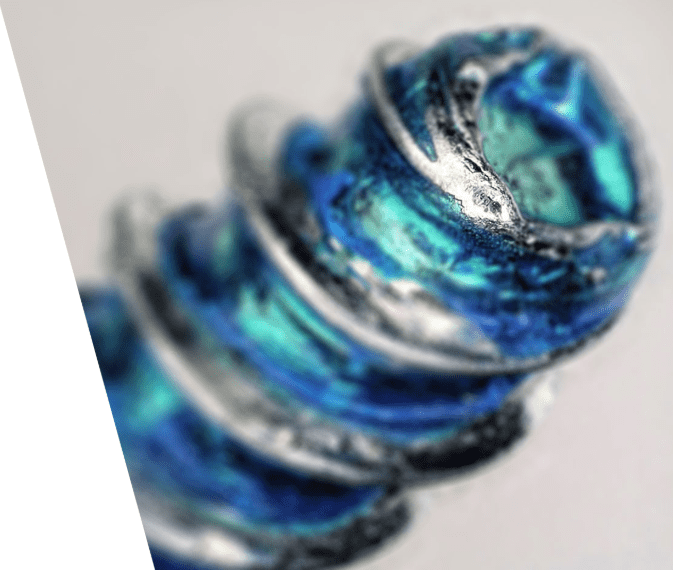

View Fully-Focused Images at all Times

Fully-focused observation is possible even at high magnifications. Users do not have to adjust the focus.

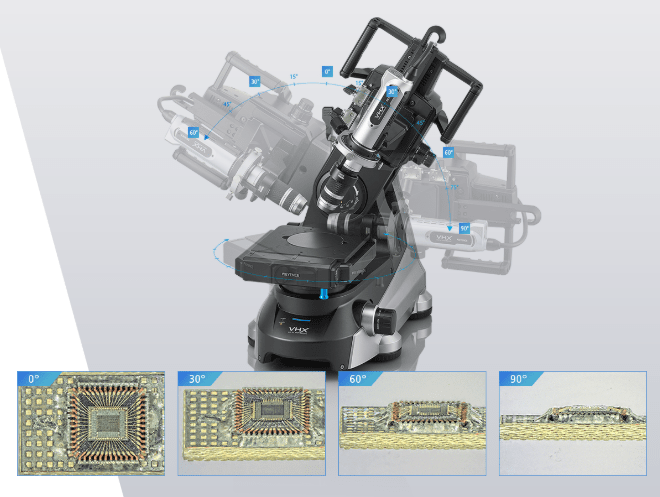

Multi-Angle Observation

Users can make the most of the multi-angle observation. The system makes sure that the target stays fixed in the field-of-view, regardless of whether the lens is rotated or tilted.

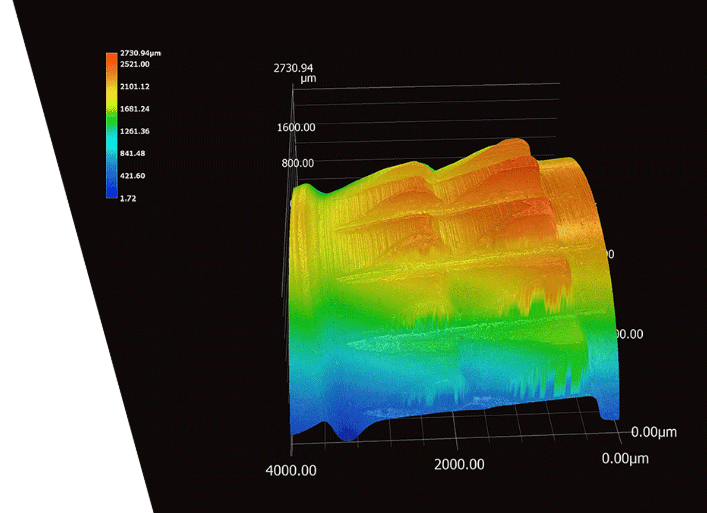

3D Image Capturing

The following activities can be achieved by adding height information to the captured images:

  • 3D display
  • Height color map
  • 3D measurement

Observation with an Optimal Balance of Brightness and Clarity

Compared to conventional optical microscopes, the VHX Series consists of a depth of field that is 20 times greater. KEYENCE designs the cameras, lenses, and graphic engine in-house, facilitating observation with a good balance of brightness and depth. Even novice users can capture high-resolution images effortlessly.

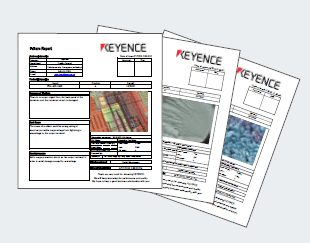

Images can be Saved and Shared Easily

Images are easily saved locally using a 1 TB hard drive. They can also be shared over a USB drive or LAN. Reports are generated and shared automatically.

Work on a Wide Range of Measurements with Just One Device

Both 2D and 3D measurements can be easily performed. Roughness, grain size, contamination, and other measurements can be carried out using just one tool.

The VHX Series allows observation that surpasses conventional imaging tools. With advanced measurement features, this system facilitates a range of analyses. The expanded memory capacity helps in storing numerous images. The interface is user-friendly and therefore can be used efficiently by both experts and amateurs. The VHX Series is fitted with all of the features required to improve your analysis.

Image Capturing in 3D Measurement with the 4K Ultra-High Accuracy Microscope

Large depth of field
Hand-held observation
Easily save and recall images
Automatically generate reports
3D measurement
Contamination analysis
View fully-focused images at all times
Multi-angle observation
3D image capturing
