A jewel in Laser Quantum’s collection, the gem 532 is a high specification, single transverse mode CW green laser that is perfect for fluorescence spectroscopy, Raman spectroscopy, DNA sequencing.
The gem 532 can also be integrated into all OEM packages and can be fitted with fiber-delivery.
The gem 532 is extremely compact and is capable of up to 2 W. It provides a highly stable, diffraction-limited beam.

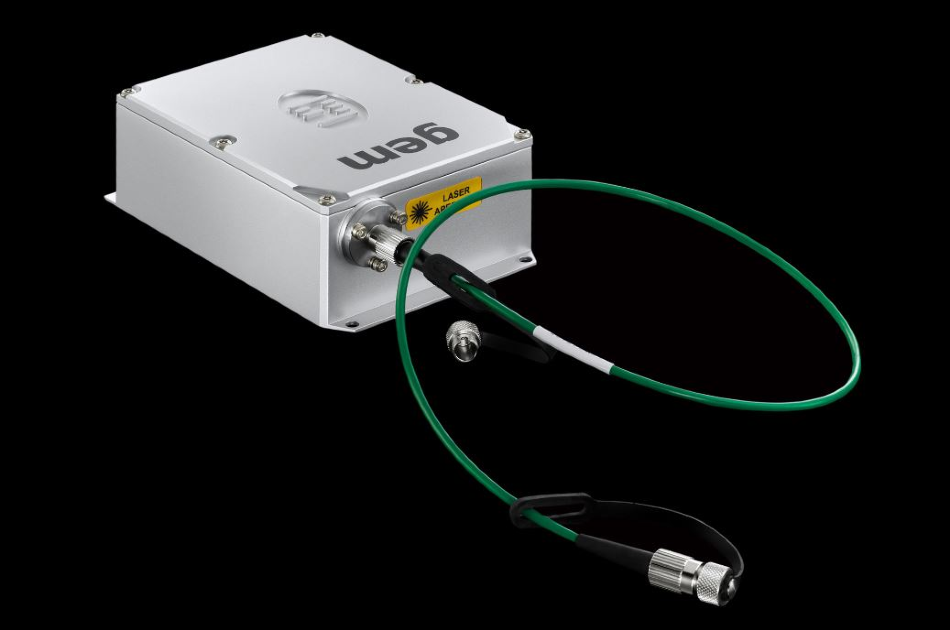

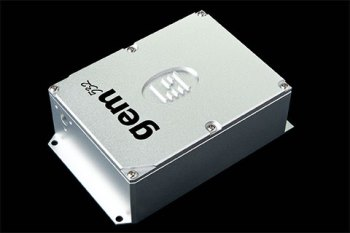

Image: gem 532.
Single Molecule Localisation Microscopy (SMLM)
Specification
| . |
. |
| Power |
50 mW - 2 W |
| Spectral Bandwidth |
30 GHz |
| Power Stability |
<0.8% RMS |
| Pointing Stability |
<10 µrad/°C |
| M2 |
<1.1 |
| Beam Diameter |
0.9 mm ± 0.1 mm |
| Polarization Direction |
Horizontal |
| Operating Temperature |
15 - 40 ºC |
| Umbilical Length |
1.5 m |
| Laser Class |
Class IV |
| Wavelength |
532 nm |
| Coherence Length |
~1 cm |
| Noise |
<0.8% RMS |
| Spatial Mode |
TEM00 |
| Divergence |
<0.8 mrad |
| Polarization Ratio |
>100:1 |
| Beam Angle |
<1 mrad |
| Weight |
0.75 kg |
| Warmup Time |
<10 minutes |
| Download Specification (612 KB) |
|
