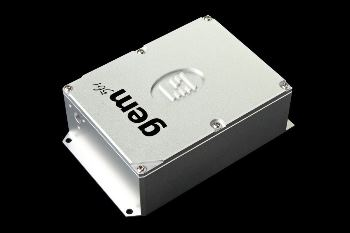

The gem 561 laser from Laser Quantum provides up to 1000 mW of yellow light in a near diffraction-limited TEM00 beam with an M²<1.2.
The gem 561 can be easily integrated into OEM applications and has been comprehensively tested for both stability and strength.
Specification
| . |
. |
| Power |
50 mW - 1000 mW |
| Spectral Bandwidth |
40 GHz |
| Power Stability |
<1.0% RMS |
| Pointing Stability |
<10 µrad/°C |
| M2 |
<1.2 |
| Beam Diameter |
1.0 mm ± 0.2 mm |
| Polarization Direction |
Horizontal |
| Operating Temperature |
15 - 40 ºC |
| Umbilical Length |
1.5 m |
| Laser Class |
Class IV |
| Wavelength |
561 nm |
| Coherence Length |
~7.5 mm |
| Noise |
<1.5% RMS |
| Spatial Mode |
TEM00 |
| Divergence |
<1 mrad |
| Polarization Ratio |
>100:1 |
| Beam Angle |
<1 mrad |
| Weight |
0.75 kg |
| Warmup Time |
<10 minutes |
