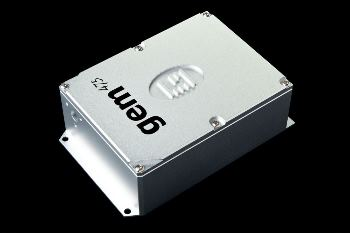

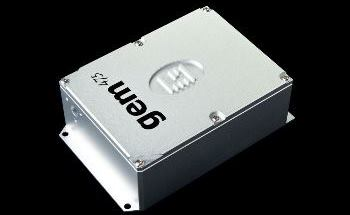

The gem 473 laser system offered by Laser Quantum is at the cutting edge of DPSS laser technology. The novel architecture produces up to 500 mW of blue CW power at 473 nm, which makes it one of the highest-powered blue lasers to be available on the market.
The gem 473 system delivers an exceptional M² beam together with a lower noise and stability specification, which further expands its versatility.
The combination of high power at this wavelength, compact package, and good collimation makes this laser system unique.
Raman Spectroscopy - the benefits
Specification
| . |
. |
| Power |
50 mW - 500 mW |
| Spectral Bandwidth |
40 GHz |
| Power Stability |
<1.0% RMS |
| Pointing Stability |
<10 µrad/°C |
| M2 |
<1.2 |
| Beam Diameter |
0.9 mm ± 0.2 mm |
| Polarization Direction |
Horizontal |
| Operating Temperature |
15 - 40 ºC |
| Umbilical Length |
1.5 m |
| Laser Class |
Class IV |
| Wavelength |
473 nm |
| Coherence Length |
~7.5 mm |
| Noise |
<1.0% RMS |
| Spatial Mode |
TEM00 |
| Divergence |
<1.5 mrad |
| Polarization Ratio |
>100:1 |
| Beam Angle |
<1 mrad |
| Weight |
0.75 kg |
| Warmup Time |
<10 minutes |
