Intelligent Evaporation with the Hei-VAP Series of Rotary Evaporators

The Hei-VAP series of rotary evaporators were designed in close association with users. Heidolph has designed the Hei-VAP range of rotary evaporators with a focus on the essentials: astute details with an emphasis on functions and features to ease daily laboratory work.

Multipurpose integrations with glassware and widespread accessories provide the right kind of configuration for all applications. Ideally matched peripherals complete the rotary evaporators—resulting in comprehensive systems, all from a single source.

During a personal consultation, Heidolph addressed individual needs from the most ideal configuration to process optimization by its application specialists—also on a special request on site.

The Hei-VAP series - one concept for all requirements

Video Credit: Heidolph North America

Rotary Evaporators—Models

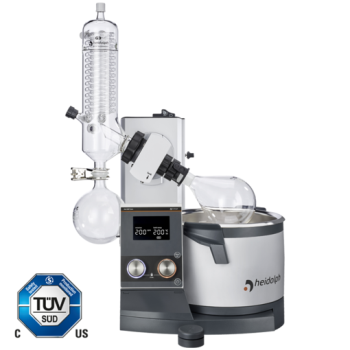

  • Hei-VAP Core—this model allows simple handling and provides uncompromising quality.

Hei-VAP Core—this model allows simple handling and provides uncompromising quality.

Image Credit: Heidolph North America

  • Hei-VAP Expert—with the 5″ touch display, users can always have a clear view of all the values.

Hei-VAP Expert—with the 5″ touch display, users can always have a clear view of all the values.

Image Credit: Heidolph North America

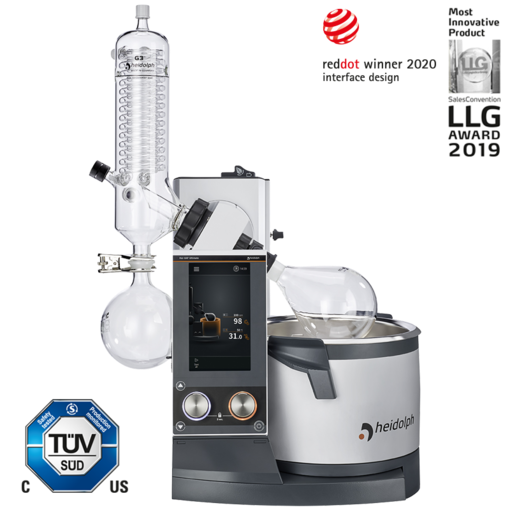

  • Hei-VAP Ultimate—with the 7″ touch display, users can invariably have a clear view of all the values.

Hei-VAP Ultimate—with the 7″ touch display, users can invariably have a clear view of all the values.

Image Credit: Heidolph North America

Hei-VAP Expert Control—the central 5″ control unit provides uncompromising accuracy.

Image Credit: Heidolph North America

Hei-VAP Ultimate Control— the central 7″ control unit offers uncompromising accuracy.

Image Credit: Heidolph North America

Rotary Evaporators—AddOns

Chillers

The Hei-CHILL models have been particularly designed for continuous and reliable operation in laboratories and offer cooling capacities from 250 to 1200 W.

Chillers

Image Credit: Heidolph North America

Valve-Regulated Vacuum Pumps

The standard vacuum pumps can be controlled manually or through valve operated vacuum controllers.

Valve-Regulated Vacuum Pumps

Image Credit: Heidolph North America

Distimatic Bench-top

This model offers around-the-clock distillation.

Distimatic Bench-top

Image Credit: Heidolph North America

RPM-Regulated Vacuum Pumps

These controllable vacuum pumps allow digital control of the vacuum directly at the unit or through an operation panel.

RPM-Regulated Vacuum Pumps

Image Credit: Heidolph North America

Rotary Evaporators—Accessories

Glassware Sets

Glassware G1—a glassware set fitted with a diagonal condenser for all regular distillations.

Glassware G1—a glassware set fitted with a diagonal condenser for all regular distillations.

Image Credit: Heidolph North America

Glassware set G1B—a coated glassware set fitted with a diagonal condenser for all regular distillations.

Glassware set G1B—a coated-glassware set fitted with a diagonal condenser for all regular distillations.

Image Credit: Heidolph North America

Glassware set G3—glassware set equipped with vertical condenser for all standard distillations.

Glassware set G3—glassware set equipped with vertical condenser for all standard distillations.

Image Credit: Heidolph North America

Glassware set G3B—a coated glassware set fitted with a vertical condenser for all regular distillations.

Glassware set G3B—a coated glassware set fitted with a vertical condenser for all regular distillations.

Image Credit: Heidolph North America

Glassware set G3 XL—a glassware set equipped with a vertical condenser to deliver the highest maximum evaporation performance.

Glassware set G3 XL—a glassware set equipped with a vertical condenser to deliver the highest maximum evaporation performance.

Image Credit: Heidolph North America

Glassware set G3B XL—a coated glassware set equipped with a vertical condenser to deliver the highest evaporation performance.

Glassware set G3B XL—a coated glassware set equipped with a vertical condenser to deliver the highest evaporation performance.

Image Credit: Heidolph North America

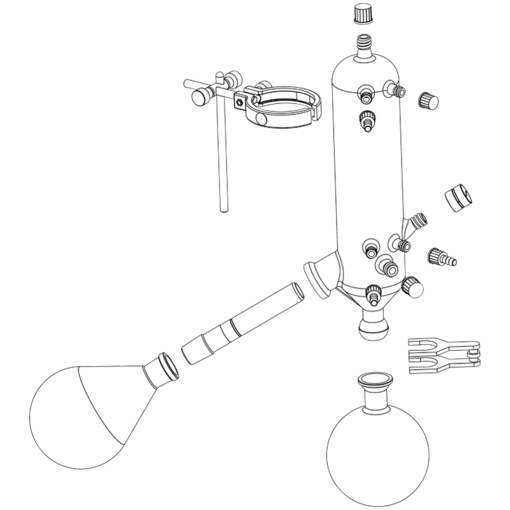

Glassware set G5—a glassware set equipped with a dry ice condenser for low boiling solvents.

Glassware set G5—a glassware set equipped with a dry ice condenser for low-boiling solvents.

Image Credit: Heidolph North America

Glassware set G5B—a coated glassware set fitted with a dry ice condenser for low boiling solvents.

Glassware set G5B—a coated glassware set fitted with a dry ice condenser for low-boiling solvents.

Image Credit: Heidolph North America

Glassware set G6—a glassware set fitted with a vertical condenser for reflux distillation.

Glassware set G6—a glassware set fitted with a vertical condenser for reflux distillation.

Image Credit: Heidolph North America

Glassware set G6B—a coated glassware set fitted with a vertical condenser for reflux distillation.

Glassware set G6B—a coated glassware set fitted with a vertical condenser for reflux distillation.

Image Credit: Heidolph North America

Evaporating Flasks

Evaporating flask 50 mL.

Evaporating flask 50 mL. Image Credit: Heidolph North America

Evaporating flask 100 mL.

Evaporating flask 100 mL. Image Credit: Heidolph North America

Evaporating flask 250 mL.

Evaporating flask 250 mL. Image Credit: Heidolph North America

Evaporating flask 500 mL.

Evaporating flask 500 mL. Image Credit: Heidolph North America

Evaporating flask 1,000 mL.

Evaporating flask 1,000 mL. Image Credit: Heidolph North America

Evaporating flask 2,000 mL.

Evaporating flask 2,000 mL. Image Credit: Heidolph North America

Evaporating flask 3,000 mL.

Evaporating flask 3,000 mL. Image Credit: Heidolph North America

Evaporating flask 5,000 mL.

Evaporating flask 5,000 mL. Image Credit: Heidolph North America

Powder Flasks

Powder flasks 500 mL.

Powder flasks 500 mL. Image Credit: Heidolph North America

Powder flask 1,000 mL.

Powder flask 1,000 mL. Image Credit: Heidolph North America

Powder flask 2,000 mL.

Powder flask 2,000 mL. Image Credit: Heidolph North America

Receiving Flasks

Receiving flask 100 mL.

Receiving flask 100 mL. Image Credit: Heidolph North America

Coated receiving flask 100 mL.

Coated receiving flask 100 mL. Image Credit: Heidolph North America

Receiving flask 250 mL.

Receiving flask 250 mL. Image Credit: Heidolph North America

Coated receiving flask 250 mL.

Coated receiving flask 250 mL. Image Credit: Heidolph North America

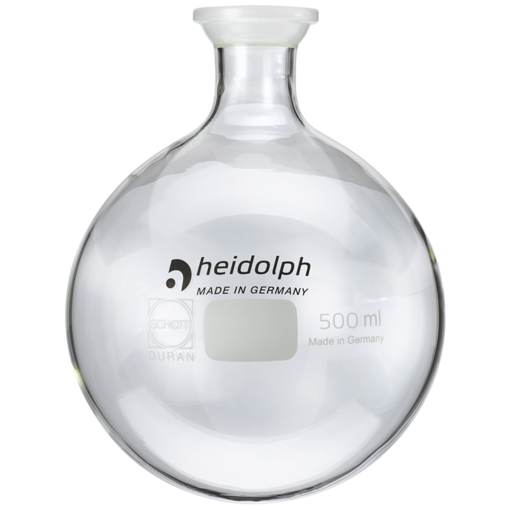

Receiving flask 500 mL.

Receiving flask 500 mL. Image Credit: Heidolph North America

Coated receiving flask 500 mL.

Coated receiving flask 500 mL. Image Credit: Heidolph North America

Receiving flask 1,000 mL.

Receiving flask 1,000 mL. Image Credit: Heidolph North America

Coated receiving flask 1,000 mL.

Coated receiving flask 1,000 mL. Image Credit: Heidolph North America

Receiving flask 2,000 mL.

Receiving flask 2,000 mL. Image Credit: Heidolph North America

Coated receiving flask 2,000 mL.

Coated receiving flask 2,000 mL. Image Credit: Heidolph North America

Receiving flask 3,000 mL.

Receiving flask 3,000 mL. Image Credit: Heidolph North America

Coated receiving flask 3,000 mL.

Coated receiving flask 3,000 mL. Image Credit: Heidolph North America

Evaporating Cylinder

Evaporating cylinder 1,500 mL.

Evaporating cylinder 1,500 mL. Image Credit: Heidolph North America

Evaporating cylinder 500 mL.

Evaporating cylinder 500 mL. Image Credit: Heidolph North America

Spider NS 14. 5

Spider with 6 distillation sleeves à 20 mL.

Spider with 6 distillation sleeves - 20 mL. Image Credit: Heidolph North America

Spider with 12 distillation sleeves à 20 mL.

Spider with 12 distillation sleeves - 20 mL. Image Credit: Heidolph North America

Spider with 20 distillation sleeves à 20 mL.

Spider with 20 distillation sleeves - 20 mL. Image Credit: Heidolph North America

Spider NS 24

Spider with 5 flasks à 50 mL.

Spider with 5 flasks - 50 mL. Image Credit: Heidolph North America

Spider with 5 flasks à 100 mL.

Spider with 5 flasks - 100 mL. Image Credit: Heidolph North America

Foam Brake

Foam brake with flask clamp.

Foam brake with flask clamp. Image Credit: Heidolph North America

Additional Accessories

Guard hood.

Guard hood. Image Credit: Heidolph North America

Guard shield.

Guard shield. Image Credit: Heidolph North America

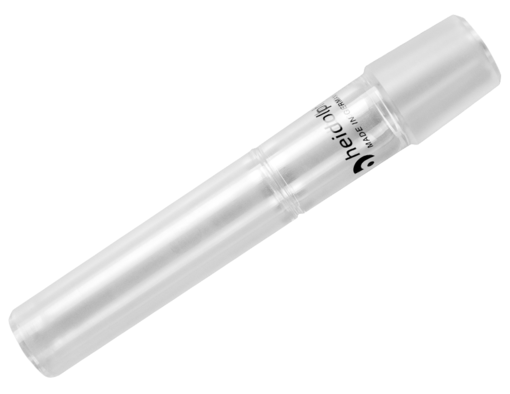

Spare vapor tube.

Spare vapor tube. Image Credit: Heidolph North America

Tubing set 12 m (tubing for vacuum and water connection).

Tubing set 12 m (tubing for vacuum and water connection). Image Credit: Heidolph North America

Tubing by meter (tubing for vacuum and water connection).

Tubing by meter (tubing for vacuum and water connection). Image Credit: Heidolph North America

Enforced cooling tube (for cooling).

Enforced cooling tube (for cooling). Image Credit: Heidolph North America

Vacuum seal PTFE/FKM (spare seal).

Vacuum seal PTFE/FKM (spare seal). Image Credit: Heidolph North America

Vacuum seal PTFE/FFKM for applications with highly abrasive solutions

Vacuum seal PTFE/FFKM for applications with highly abrasive solutions. Image Credit: Heidolph North America

Heating bath liquid up to 220 °C.

Heating bath liquid up to 220°C. Image Credit: Heidolph North America

Ventilation and Replenishment Valve for precise dosing during the process.

Ventilation and Replenishment Valve for precise dosing during the process. Image Credit: Heidolph North America

Extension cable for operation outside closed-fume hoods.

Extension cable for operation outside closed-fume hoods. Image Credit: Heidolph North America

Holding device for all Hei-VAP operating panels.

Holding device for all Hei-VAP operating panels. Image Credit: Heidolph North America

Vapor temperature sensor.

Vapor temperature sensor. Image Credit: Heidolph North America

Control-Box for a subsequent upgrade for Hei-VAP Expert and Hei-VAP Ultimate models with Control function.

Control-Box for a subsequent upgrade for Hei-VAP Expert and Hei-VAP Ultimate models with Control function. Image Credit: Heidolph North America

AUTOaccurate-Sensor.

AUTOaccurate-Sensor. Image Credit: Heidolph North America

Aqua-Stop.

Aqua-Stop. Image Credit: Heidolph North America

RS 232 cable.

RS 232 cable. Image Credit: Heidolph North America

Vacuum Accessories

Woulff bottle - Hei-VAP 2019—allows additional recovery of solvents to protect the vacuum pump and the vacuum valve.

Woulff bottle - Hei-VAP 2019—allows additional recovery of solvents to protect the vacuum pump and the vacuum valve.

Image Credit: Heidolph North America

Manual vacuum controller—this can be used to control house vacuum or any other vacuum source.

Manual vacuum controller—this can be used to control house vacuum or any other vacuum source.

Image Credit: Heidolph North America

Hei-VAC Control—this is a digital vacuum control.

Hei-VAC Control—this is a digital vacuum control.

Image Credit: Heidolph North America

Switchbox—this can help connect up to three rotary evaporators to a single vacuum pump

Switchbox—this can help connect up to three rotary evaporators to a single vacuum pump

Image Credit: Heidolph North America

Vacuum valve—can be used to handle vacuum for Hei-VAP Precision models with valve-regulated pumps.

Vacuum valve—can be used to handle vacuum for Hei-VAP Precision models with valve-regulated pumps.

Image Credit: Heidolph North America

Rotary Evaporators—Product Advantages

Leading Safety Standards

  • Digital displays enable constant tracking of the current values and also protect the electronics consistently against dust and dripping water, thanks to protection class IP 42.
  • All Hei-VAP rotary evaporators include a double-wall, ergonomic handles, an integrated spout and a safety heating bath with dry running and overheating protection.
  • The standby button halts all functions and, when a motor lift model is used, lifts out the evaporating flask from the heating bath.
  • The knobs have a locking function that prevents accidental adjustment of the values
  • Individual knobs with intuitive LED ring light system enable visual process control as well as direct intervention in the evaporation process at all times.
  • Universal heating bath available for all flask sizes of up to 5 L (retooling is not needed). The rugged metal connection to the base of the device enables variable distances for the heating bath up to 200 mm without the need for tilting.
  • Extra safety from one source—such as the transparent plastic coating of the glassware, guard hood (implosion protection), guard shield and IQ-OQ certification and documentation.
  • To prevent corrosion and short circuits methodically, the cable connections of the heating bath and the operating panel conform to the high protection class IP 67.
  • Residual heat indicator—when the function is in standby mode and is deactivated, flashing and the display of the remaining heat alert about the risk of burns (>50°C)

Superior Ease of Use

  • The multipurpose operating concept fulfills all the needs with touch or digital displays.
  • All models are supplied with a motor or hand lift.
  • FDA-compliant materials for all passive and active media-contacting components allow a wider range of studies and applications at a maximum level.
  • The removable panel with an optional holding device and extension cable enables easy and rapid operation even beyond the closed-fume hoods.
  • The patented flask clamp Easy-Clip makes it easy to attach and change the evaporating flask. The mechanism prevents glass breakage by gently separating the ground glass joints.
  • The automatic module Distimatic, provided as an option, allows fully automatic distillation in a continuous and unattended operation.
  • The ground-free condenser design ensures easy ventilation—the ventilation cap with threaded connection and PTFE inlay prevents stuck glass, without any sign of grease. A venting valve with a refill function is also provided as an option.
  • Offers intuitive operation, since all settings are centrally configured on the operating panel. Along with the Control-Box, the panel can also be utilized as the central control unit to control the vacuum and also the Hei-CHILL recirculation chiller.
  • Easy release allows independent adjustment of the angle of inclination from 20° to 80°, while the height stop feature restricts the immersion depth by up to 155 mm

Reduced Cost of Ownership

  • Ground-free condenser design along with grease-free threaded connections
  • No needless additional costs—the patented clamping sleeve effectively avoids the vapor tube from getting wedged in the drive
  • Provides even more efficiency with up to 40% higher evaporation rates—the smart design of the XL condenser offers 57% more cooling surface at virtually the same height as the earlier versions of standard vertical condensers
  • The exclusive tightness of the vacuum system results in decreased energy costs, shorter process times and the purest results
  • With the integrated screw thread of the patented Easy-Clip, wedged evaporating flasks can be removed easily and safely
  • Media-contacting plastic components, like the clamping sleeve on the vapor tube and the screw connection for placing the condenser, are made of highly resistant PPS to ensure an extended lifespan
  • The universal heating bath is well suited for all flasks of up to 5 L, without the extra costs needed for retrofitting
  • The particularly durable and highly resistant PTFE vacuum seals achieve optimal tightness and decrease the associated costs for spare parts in the long run
  • Several spare and wear parts of the current series are backward- and forward-compatible with previous models
  • A quality that pays off—corrosion-free die-cast housings with maintenance-free motors and condensation-repellent varnish ensure a continuous and unlimited operation and an extended lifespan with considerably lower maintenance costs

Other Equipment by this Supplier
