EU-GMP Facilites Choose Applied Extracts for the Evolving Extraction Technology Market

Applied Extracts makes extractors for EU-GMP facilities, manufacturing machines sized between 10 - 1000 Liters of extraction capacity.  Applied manufactures in both Supercritical CO2 machines, as well as Butane/Propane.  The most popular machine is the 50L (2x25L) Supercritical CO2 Extractor, and new for 2021 is the B.A.B.E. hydrocarbon extractor.

Extraction technology is evolving as fast as the market grows...  Incredibly fast.  Applied Extracts continues to innovate in order to remain ahead of the curve, and meet the ever-changing needs of processors.

2x25L Supercritical Extractors

The Supercritical CO2 machines from Applied Extracts are the choice of EU-GMP compliant facilites, but are PLC-controlled and no special skill set is needed to operate them.

  • EU-GMP faclities choose Applied Extracts Technology
  • Operators are trained within hours - no prior extraction experience needed
  • Material in each 25L vessel can be completely processed in 60-90 minutes
  • Each 50L (2x25L) extractor processes up to 400+ lbs of biomass per day

*Pictured below:  six Applied Extracts 50L (2x25L) extractors at EU-GMP Certified Facility, Vantage Hemp (Greeley, CO).  Over 1000KG (2200 lbs) of hemp are processed each day.

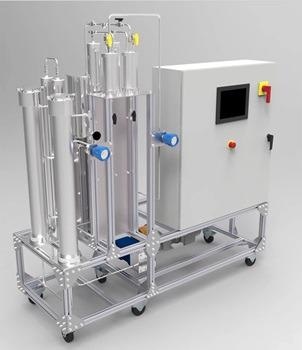

One 50L (2x25L) Applied Extracts Machine:

Image Credit: Applied Extracts, Inc.

2x250L Supercritical Extractors

The industrial-scale Supercritical CO2 systems from Applied Extracts are fully automated and (just as with their smaller machines, requires no special skillset to operate:

  • 150-250 pounds of biomass processed every two hours
  • The machine is able to yeld 10,000+ grams/hour (10KG)
  • Up to 3000 pounds of processing each day

Meet the 3 Extractors: 2x25L, 2X250L, and the B.A.B.E

Image Credit: Applied Extracts, Inc.

Engineered Solutions

Applied Extracts supplies a complete engineering and design process. This includes an on-site engineering review which results in a detailed drawing and design package and a project management plan. Complete training and method development will be given after installation.

Each system is proudly designed and manufactured in the United States and includes:

  • Completely automated regulators and valves for pressure and flow control
  • An individual control panel with remote monitoring (UL/CSA listed)
  • One 25 L/min multi-headed diaphragm pump with motor, maximum 4300 psi (300 bar) discharge pressure
  • Two 250 L extraction vessels w/automated lid opening and closure (ASME certified)
  • Factory assistance, complete training, on-site support and warranty
  • One 300 L CO2 accumulator tank
  • Two 50 L cyclone separator tanks

PE and ASME Certifications, CRNs, TSSA and other third party certifications will be supplied as needed.

Meet the B.A.B.E – Big Ass Butane Extractor

Applied Extracts’ first butane extractor - new for 2021.

Features

  • Large 40L extraction vessel
  • Efficient 40 Minute Extractions
  • Fast Recovery time ~20 minutes
  • Run with Butane, Propane, or desired blend
  • In-line molecular sieve for clean up of odor and color
  • Fully PLC controlled with touch screen
  • Class 1, Div 1 – Intrinsically safe
  • Turn-key system including chiller

Meet the 3 Extractors: 2x25L, 2X250L, and the B.A.B.E

Image Credit: Applied Extracts, Inc.

Meet the 3 Extractors: 2x25L, 2X250L, and the B.A.B.E

Image Credit: Applied Extracts, Inc.

Meet the 3 Extractors: 2x25L, 2X250L, and the B.A.B.E

Image Credit: Applied Extracts, Inc.

Meet the 3 Extractors: 2x25L, 2X250L, and the B.A.B.E

Image Credit: Applied Extracts, Inc.

Meet the 3 Extractors: 2x25L, 2X250L, and the B.A.B.E

Image Credit: Applied Extracts, Inc.

Complete Solutions

Applied Extracts gives complete training, SOPs and installation. Methods development, basic operations and maintenance guidelines and techniques are all included in the training. Their aim is to keep you up and running.

Each system is proudly designed and manufactured in the United States and includes:

  • One 16 L liquid CO2 accumulator tank (CO2 recycler)
  • A 1.4 L/min single-headed ultra-quiet diaphragm pump with electric motor, 5800 psi (400 bar) maximum discharge pressure
  • Critical spares and seals
  • A one year limited warranty
  • Two 5 L cyclone separator tanks
  • Two 25 L extraction vessels
  • An individual control panel with remote monitoring (UL/CSA listed)

PE and ASME Certifications, CRNs, TSSA and other third party certifications will be supplied as needed.
