SV600 Fixed Acoustic Imager to Detect Gas and Air Leaks

The SV600 can be installed close to any device or asset, to any area of the production line or where human access is limited or hazardous to make sure users can oversee the most essential pieces of the facility without interference by using a range of advanced sound sensors.

When used as part of the product leak testing process, the SV600 integrates with the process and excludes the need for lengthy fault-finding mechanisms, such as soapy water tests, since it is a fixed and automated solution. By constantly monitoring the environment, users can immediately detect and repair air leaks, lowering the compressed air and power usage and helping the facility save money.

  • Reduce operator interference with a completely automatic and integrated solution
  • Examine sound signature changes in real-time to avoid unscheduled maintenance
  • Gather data from dangerous or inaccessible locations to maintain staff safety

With the power of acoustic imaging, users can visualize the unseen or unheard. The SV600 Fixed Acoustic Imager allows users to identify, track down and visualize air and gas leakages and shifts in sound signatures in real-time before they become expensive issues.

Furthermore, the SV600 can be used for a wide range of constant acoustic imaging applications, including as a Boston Dynamics Spot® payload.

Key Features

  • 64-Digital MEMS microphones placed in a Sunflower Array
  • High-end 24/7 acoustic screening
  • Integrated visual light camera
  • Robust processor for onboard real-time processing
    • Event triggering
    • Frequency filtering
    • Sound classification
    • dB values and sound intensity mapping
  • Option for IO support through field bus coupler
  • Power over Ethernet (POE)
  • Ethernet network communications interface with installed 8-wire M12 field bus or RJ45 connector
  • Ingress security IP54

SoundMap™ Technology

The SV600 uses strong SoundMapTM technology to convert the sounds it hears into a visual representation, allowing users to pinpoint and evaluate problematic areas. This gives facilities more understanding of the quality of product or safety concerns, as well as the capacity to discern changes in pumps, compressors, pipes, conveyors and other equipment.

Aside from 24/7 remote monitoring, the SV600 combines seamlessly into factory systems, and user-defined warnings can be set up to inform users when sound signatures shift, even in the hard-to-reach areas of a facility.

Facilities can constantly track equipment to optimize performance, perform routine maintenance or identify mechanical oddities, like bearing wear, even before a disaster happens, allowing users to keep the processes running.

SV600 Payload for Spot® from Boston Dynamics

At present, the SV600 Acoustic Imager is available as a payload for Boston Dynamics' Spot®. Spot focuses on automating sensing and inspection, captures infinite data and can explore without limits, all while the SV600 continuously detects, locates and visualizes the unseen and unheard.

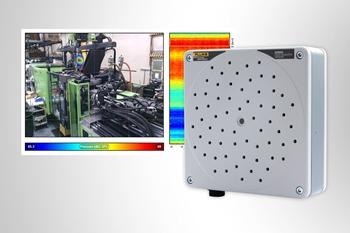

SV600 Fixed Acoustic Imager from Fluke Process Instruments

Image Credit: Fluke Process Instruments EMEA

SV600 Fixed Acoustic Imager Payload for Boston Dynamics Spot®

Image Credit: Fluke Process Instruments EMEA
