DECTRIS ARINA Ultra-Fast 4D STEM Detector

The DECTRIS ARINA is an ultra-fast 4D STEM detector that does not trade off on sensitivity or dynamic range.

The DECTRIS ARINA retractable, electron-counting detector is designed to handle 4D STEM applications. It features a new ASIC and combines an extreme speed of up to 120,000 frames per second with a noise-free readout and a high dynamic range. This allows superior-quality data acquisition at the conventional speed of a traditional STEM measurement.

Owing to DECTRIS’ hybrid-pixel technology, ARINA can utilize various sensor materials and runs optimally in the entire energy range from 30 to 300 keV.

DECTRIS ARINA is ideal for a wide range of 4D STEM applications with dwell times lower than 10 μs, spanning from crystalline phases and orientation mapping to ptychography, including versatile STEM image reconstruction using virtual detectors.

  • Flexible: Comprising silicon (Si) or high-Z sensor materials, DECTRIS ARINA encompasses an extensive range of energies from 30 to 300 keV.
  • Rapid and sensitive: The DECTRIS ARINA can count every single electron—up to 10 pA/pixel even at a frame rate of 120 kHz.
  • Empowering: The DECTRIS team, comprising engineers and scientists, is ready to assist users in obtaining the maximum from their setup.

Get Up To Speed

Meet DECTRIS ARINA: A Hybrid-Pixel Electron Detector for Advanced 4D STEM Applications

Video Credit: Dectris Ltd.

Detector Specifications

Source: Dectris Ltd.

. .
Number of pixels (W x H) 192 x 192
Active area (W x H) [mm²] 20 x 20
Pixel size (W x H) [µm²] 100 x 100
Sensor material Silicon (Si) or high-Z
Energy range [keV] 30 - 300
Frame rate (max.) [Hz] 120,000
Count rate (max.) [el/s/pixel] 108
Detective Quantum Efficiency, DQE(0) at 80 keV -  0.82 | at 200 keV - 0.75 | at 300 keV - 0.75
Detector mounting Retractable


*All specifications are subject to change without notice.

Novena Software

NOVENA, developed by eisTools for DECTRIS, presents a swift and user-friendly solution for visualizing and analyzing extensive 4D STEM datasets produced by the ARINA electron-counting detector. Its intuitive interface allows users to effortlessly define virtual detectors and calculate Center-of-Mass and Differential-Phase-Contrast images

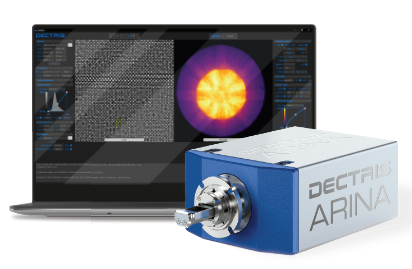

DECTRIS ARINA Ultra-Fast 4D STEM Detector

Image Credit: Dectris Ltd.


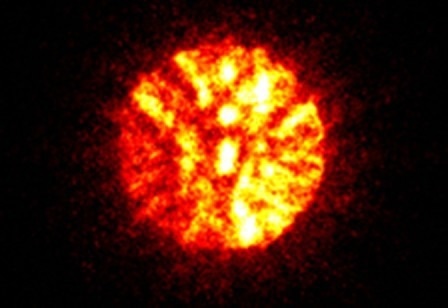

Four-Dimensional Scanning Transmission Electron Microscopy (4D STEM)

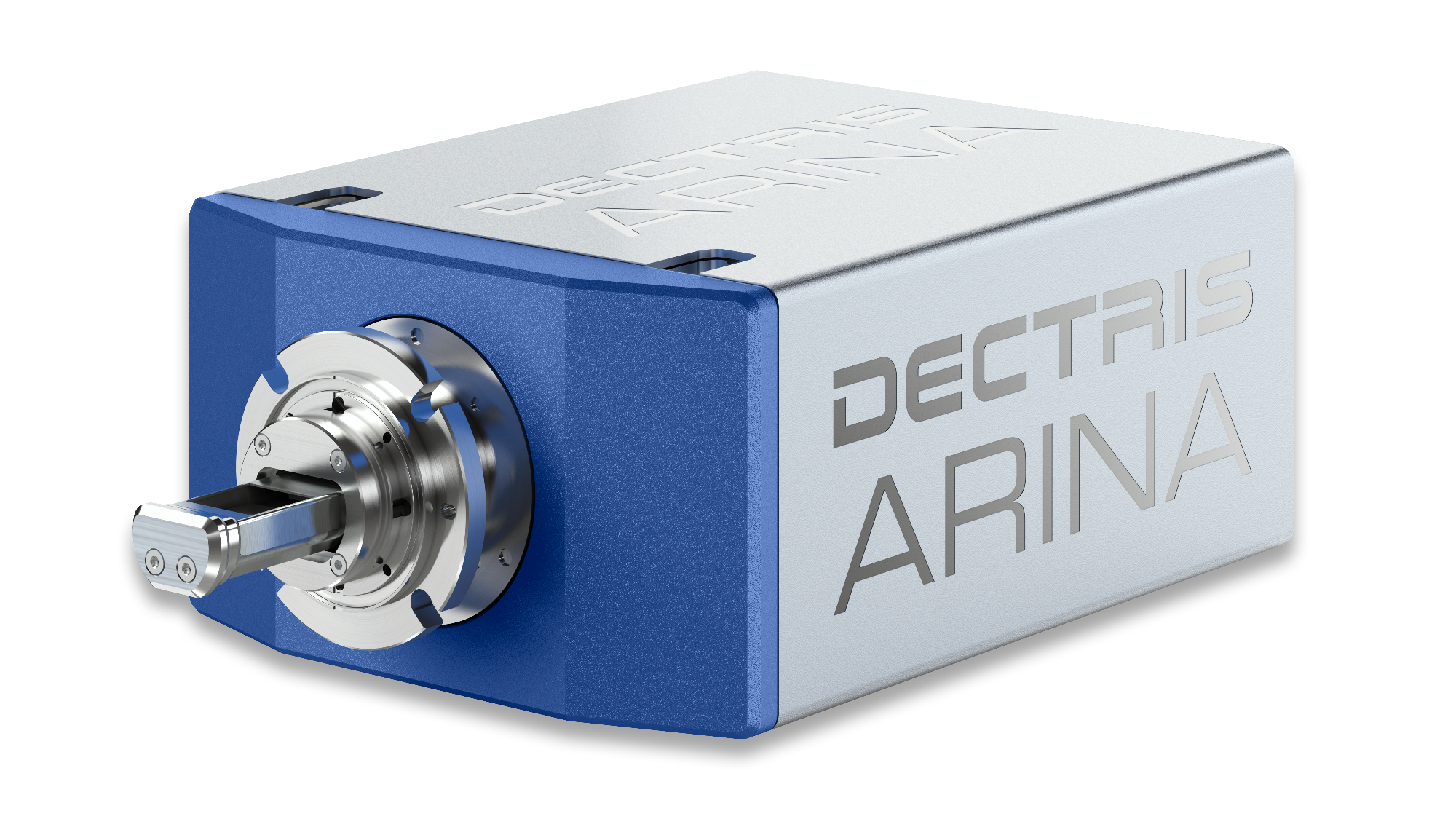

DECTRIS ARINA Ultra-Fast 4D STEM Detector
