Elevate Your Workstation With the 9100 Series Vibration Isolation

The 9100 Series Vibration Isolation Workstation establishes the industry standard for the vast majority of vibration control applications.

With a range of worksurfaces and accessories, the 9100 Series offers a comfortable workspace that can be tailored to specific requirements. It is designed to isolate delicate instruments and experiments weighing up to 1300 lbs.

The 9100 offers both horizontal and vertical isolation. Regardless of the addition or removal of load, the worksurface, which is supported by a VibraDamped steel frame with an Active-Air suspension, will always remain at a predetermined zero deflection level.

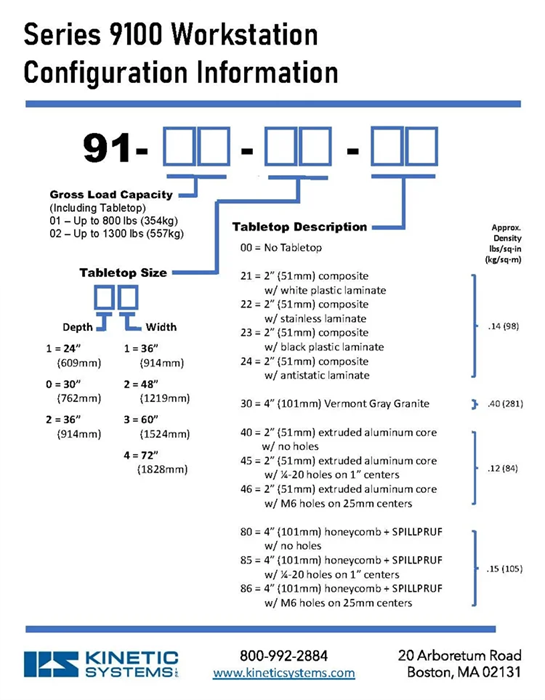

The 9100 Series can be field-converted to the required capacity and comes with two load capabilities.

Typical Applications

Atomic force microscopes, wafer probing, mask alignment, confocal microscopes, analytical balances, cell injection, patch clamping, optical microscopes, and microscopes.

Optional Accessories

Choose from the following components to create a workstation that meets the stringent requirements:

  • Overhead Rear Equipment Shelf
  • Overhead Side Equipment Shelf
  • Enclosures – Additional Protection for your Sensitive Equipment
  • Portable Air Compressor
  • Electrical Outlet Strip
  • Custom Sizes
  • Class 10 Cleanroom Compatible Finish
  • Guard Rails – Front and Rear
  • Side Guard Rails
  • Padded Arm Rests
  • Retractable Casters – Easily Move your Workstation in the Lab
  • Faraday Cage
  • Fixed Shelves – Standard and Custom Sizes
  • Sliding Shelves – Gain More Tabletop Work Area
  • Monitor Support – Offered for Both CRT and FPD
  • Keyboard Shelf

Features and Benefits

  • Horizontal vibration isolation
  • Vertical vibration isolation
  • VibraDamped steel frame
  • Maintains a pre-set zero deflection level (independent of addition or removal of load)
  • High-performance Active-Air Suspension
  • Select from 12 pre-made tabletops – personalized tabletops are also available
  • Select from 12 common sizes – bespoke sizes are also available
  • Class 100 Cleanroom Compliant with Ergonomic Design – Class 10 available
  • Repeatable and precise leveling accuracy to 0.001″ with high-accuracy valve
  • Tabletop uplimit travel restraints
  • Ergonomic styling

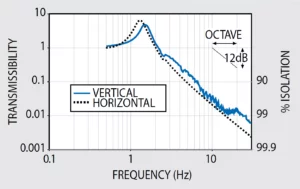

Transmissibility. Image Credit: Kinetic Systems, Inc.

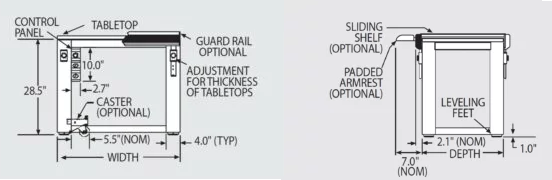

Standard Dimensions.

Standard Dimensions. Image Credit: Kinetic Systems, Inc.

Performance Data. Source: Kinetic Systems, Inc.

Min. Load @ 20 psi
Vertical Natural Frequency 1.9 Hz
Isolation Efficiency @ 5 Hz 70 %
Isolation Efficiency @ 10 Hz 90 %
Horizontal Natural Frequency 2.2 Hz
Isolation Efficiency @ 5 Hz 64 %
Isolation Efficiency @ 10 Hz 90 %
Maximum Load @ 80 psi
Vertical Natural Frequency 1.5 Hz
Isolation Efficiency @ 5 Hz 85 %
Isolation Efficiency @ 10 Hz 97 %
Horizontal Natural Frequency 1.2 Hz
Isolation Efficiency @ 5 Hz 91 %
Isolation Efficiency @ 10 Hz 97 %
Gross Load Capacity @ 80 psi
9101 800 lbs. (363 Kg)
9102 1300 lbs. (590 Kg)
Standard Linear

Class 10 White

Powder Coat

Note: Typical performance efficiencies are for microdisturbances


Elevate Your Workstation with the 9100 Series Vibration Isolation

Image Credit: Kinetic Systems, Inc.
