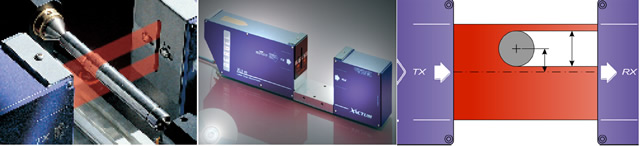

XLS 40 Single Axis Laser Micrometer from Laser-View Technologies

Xactum Laser Sensors represent a quantum leap in laser micrometer technology. Digital Signal Processing (DSP) accuracies never before achieved are now available. No other laser micrometer on the market today is as advanced.

With the completely built in electronics, the Xactum laser sensors can be used as a stand alone smart laser micrometer. It can also be connected directly to a PC, PLC or NC via its internal RS 232, RS 485 and Ethernet serial interface. In either the RS 485 or Ethernet mode numerous sensors can be networked on a common line.

The patented autocalibration feature eliminates drift. As a result the Xactum laser sensor never requires re-calibration.


  • Single axis gauge
  • 40 mm measuring range
  • 0.1 μm repeatability
  • 1200 Hz scanning frequency
  • Outstanding single shot repeatability
  • Excellent linearity
  • Permenent self calibration
  • Thermal drift self-compensation
  • 3 years guarantee
  • Fully re-programmable
  • Direct connection to PC, PLC and NC
  • Typical Applications
  • Ground or turned parts
  • Metal tubes and bars
  • Plastic extruded tubes
  • Electric cables and conductors
  • Glass tubes and rods
