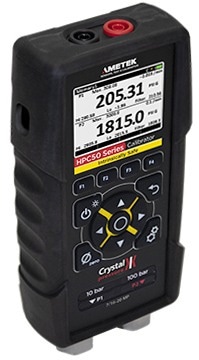

The HPC50 Series builds on the popularity of its predecessor, the HPC40, with several key enhancements, including extended battery life, a more advanced display, an additional external module connector, and built-in safety features. This dual-pressure calibrator is fully temperature-compensated, making it ideal for use in a wide range of environments, from –20 °C to 50 °C.
- Exceptional Accuracy: The HPC50 delivers 0.035 % reading accuracy, ensuring precise and reliable pressure, temperature, and electrical measurements. This high level of precision is essential for sensitive calibration tasks, where even minor inaccuracies can lead to significant issues.
- Versatile Measurement Capabilities: The HPC50 measures gauge, absolute, and differential pressures up to 10,000 psi / 700 bar / 70 MPa. Its versatility makes it a valuable tool across a range of industries, including oil and gas, manufacturing, and aerospace.
- Advanced Simplicity with a “Non-Menu” Interface: A standout feature of the HPC50 is its intuitive “Non-Menu” interface, designed to simplify operation and reduce the learning curve.
- Expanded Functionality with External Modules: The device supports up to two external pressure or temperature modules, offering enhanced flexibility. This allows users to customize the calibrator to meet specific needs, increasing its overall adaptability.
- Measure and Sink mA and V with High Accuracy: More than just a pressure calibrator, the HPC50 also serves as a high-accuracy thermometer featuring “True Ohm” technology for precise electrical readings, including sourcing and measuring mA and V.
- Store and Recall Previously Used Screens: User convenience is enhanced with the ability to store and recall previously used screens, enabling quick access to frequently used settings.
- Fully Temperature Compensated: The HPC50 is fully temperature compensated for pressure, temperature, and electrical readings throughout its operating range of –20 °C to 50 °C.
Complete the Calibration Kit
Pair the HPC50 Series with the ready-to-use pump systems to create a complete calibration kit. This all-in-one solution provides everything needed for accurate, reliable, and efficient calibration in a single package.
