In-Line Luminance, Illuminance, and Flicker Measurements with the Asteria

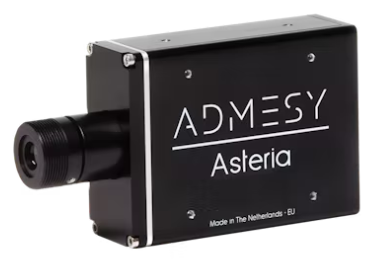

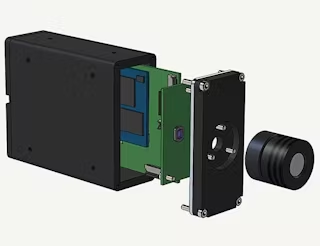

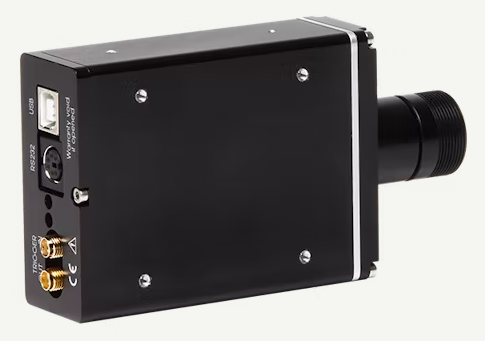

Asteria Luminance Meter: 10 mm Collimating Lens

Asteria is a high-speed photometer for display measurements, including flicker characteristics or general luminance applications. It is swift, steady, and available in multiple configurations. For set-ups where space is limited, the Asteria luminance meter is also available with an M8 fiber connector.

In-Line Luminance, Illuminance, and Flicker Measurements with the Asteria

Image Credit: Admesy

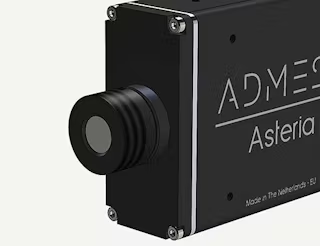

High Performance

Admesy is constantly innovating, creating better, faster, and more precise technologies to provide the most advanced test and measurement equipment solutions to customers.

In-Line Luminance, Illuminance, and Flicker Measurements with the Asteria

Image Credit: Admesy

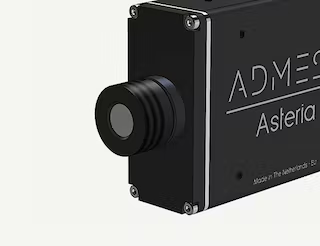

Easy to Integrate

The measurement systems are simple to include in the manufacturing or R&D workflow. Admesy works together to determine the best solution for the application, selecting from various lens alternatives. Hardware and software will be seamlessly interwoven.

In-Line Luminance, Illuminance, and Flicker Measurements with the Asteria

Image Credit: Admesy

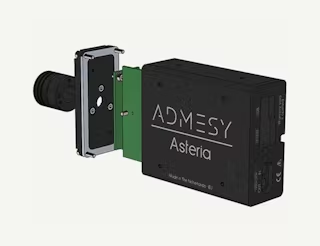

Value for Money

Admesy’s photometer has a high sample rate, is sturdy, and is reasonably priced. Admesy pledges to provide good value for the money and is straightforward and honest.

In-Line Luminance, Illuminance, and Flicker Measurements with the Asteria



Highlights

  • Absolute luminance (CIE 1931 luminosity function)
  • Measure high and low frequencies at the same time
  • High sample rate (186 567 samples per second) and large memory size
  • Flicker measurement standards:
    • Contrast min./max./RMS
    • JEITA, VESA
  • Supports Windows, OS X, and Linux integration
  • Supported in all major programming languages (Labview, Labwindows, Visual Studio C++/C#/VB) and other languages that support VISA
  • Auto-range function
  • User-calibration function
  • Trigger in- and output for inline applications

In-Line Luminance, Illuminance, and Flicker Measurements with the Asteria

Image Credit: Admesy

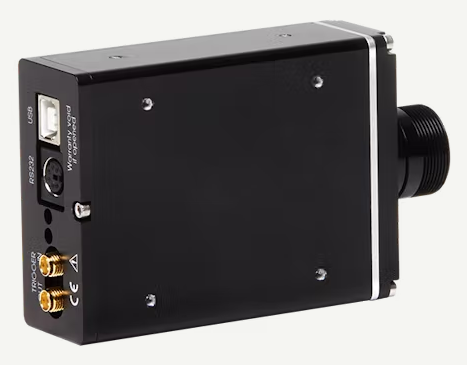

Asteria Illuminance Meter: Cosine Corrector

Asteria is a high-speed photometer for measuring illuminance. Asteria, despite its speed and consistency, can detect light source waveforms to evaluate flicker characteristics. Asteria is intended for in-line use and is available in various configurations, including an M8 fiber connector for use in confined spaces.

In-Line Luminance, Illuminance, and Flicker Measurements with the Asteria

Image Credit: Admesy

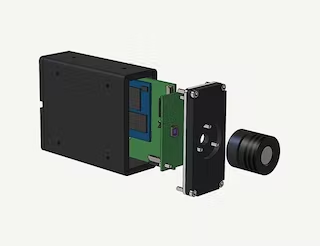

High Performance

Admesy constantly innovates, creating better, faster, and more precise technologies to continue the aim of providing the most advanced test and measurement equipment solutions to customers.

In-Line Luminance, Illuminance, and Flicker Measurements with the Asteria

Image Credit: Admesy

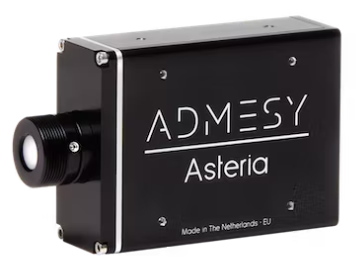

Easy to Integrate

The measurement systems are simple to include in the manufacturing or R&D workflow. Admesy works together to determine the best solution for the application, selecting from various lens alternatives. Hardware and software is seamlessly interwoven.

In-Line Luminance, Illuminance, and Flicker Measurements with the Asteria

Image Credit: Admesy

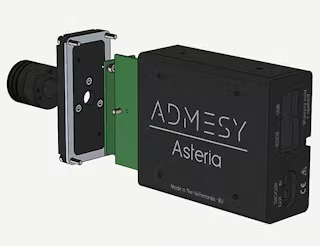

Value for Money

Admesy’s photometer features a high sample rate, while it is sturdy and cost-effective.

In-Line Luminance, Illuminance, and Flicker Measurements with the Asteria

Image Credit: Admesy

Highlights

  • Absolute illuminance (CIE 1931 luminosity function)
  • Supported in all major programming languages (Labview, Labwindows, Visual Studio C++/C#/VB) and other languages that support VISA
  • Measure high and low frequencies at the same time
  • High sample rate (186 567 samples per second) and large memory size
  • Flicker measurement standards:
    • Flicker percentage and index (IES)
    • IEEE 1789
  • Supports Windows, OS X, and Linux integration
  • User-calibration function
  • Auto-range function
  • Trigger in- and output for inline applications

In-Line Luminance, Illuminance, and Flicker Measurements with the Asteria

Image Credit: Admesy
