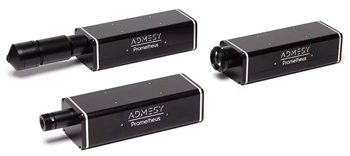

Prometheus is a solution for all forms of display spot measurement. This colorimeter series was created to meet user demands by incorporating flicker and response time measurement options into the color measurements.
It has a greater dynamic range and faster sampling speed than the trusted Hyperion colorimeter. Prometheus, like the rest of the Admesy series, is built to last and is simple to incorporate into production applications. It also has a good price-performance ratio.
Lens Options
Prometheus is available with a variety of lenses. Collimating lenses with spot sizes of 10 mm, 20 mm, and 27 mm are available for general display measurements. A focusing lens variant with a 2.1 mm or 5 mm spot size is also available for small areas of interest or unique applications such as camera-under-display testing.
The table below divides the various lens options into three fundamental sensitivity ranges, which correspond to the necessary measurement speeds. When compared to the “Standard Sensitivity” options, Prometheus colorimeters with “Improved Sensitivity” have around a 3 to 4 times higher sensitivity.
The “Highest Sensitivity” device options are approximately 2.5 to 3 times more sensitive than the “Improved Sensitivity” device options. The product specifications include precise performance metrics.
Source: Admesy
| Spot Size / Model |
Acceptance Angle |
Lens
Type |
Standard Sensitivity |
Improved Sensitivity |
Highest Sensitivity |
| 2.1 mm |
± 10° |
Focusing |
 |
|
|
| 5 mm |
± 5° |
Focusing |
|
|
|
| 10 mm |
± 2.5° |
Collimating |
|
|
|
| 10 mm WA |
± 6° |
Collimating |
|
|
|
| 20 mm |
± 3° |
Collimating |
|
|
|
| 27 mm WA |
± 4.5° |
Collimating |
|
|
|
Build to Perform and Ready to Use
High Performance
Admesy is constantly innovating, creating better, faster, and more precise technologies, with the aim of providing the most advanced test and measurement equipment solutions to its customers.

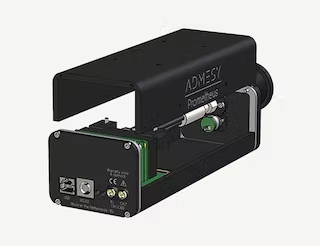

Image Credit: Admesy
Easy to Integrate
Admesy’s measurement solutions are simple to incorporate into the manufacturing or product development workflow. Together, Admesy determines the optimal solution for the application in question — choosing from a range of different lens options. Hardware and software are seamlessly intergrated.

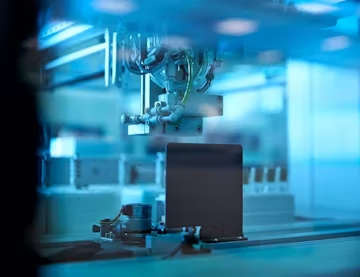

Image Credit: Admesy
Value for Money
What sets Admesy’s spectroradiometers apart from their competitors is their repeatability and precision, as well as their durability and low cost; thus, they are regarded as a smart choice. Admesy promises value for money.

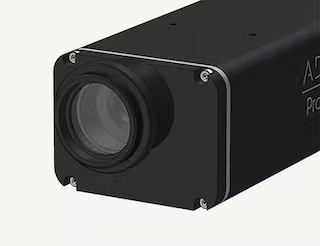

Image Credit: Admesy
Satisfying Customer Needs
In a fast-paced and ever-changing display market, customers continue to innovate, pushing the limits of current display technologies. Admesy encourages both creativity and imagination. The measuring systems are constantly developed and ready to meet the most recent measurement requirements.
Measurements Users Can Trust
High precision and repeatability are the characteristics that any high-end measurement solution requires, and that is exactly what Admesy provides.
Image Credit: Admesy
Running 24/7
The Prometheus series is optimized for production in two shifts or 24/7.
Image Credit: Admesy
Lowest Takt Times
Fast takt times are critical in any manufacturing environment. Admesy assists the user in selecting the best solution for this.
Image Credit: Admesy
