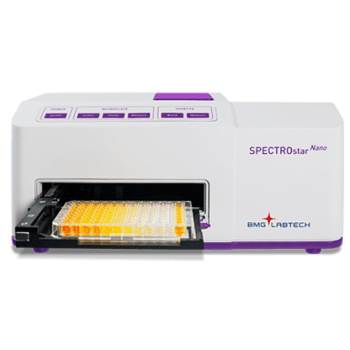

SPECTROstar Nano Absorbance Plate Reader with Cuvette Port

The SPECTROstar Nano, equipped with BMG LABTECH’s ultra-fast UV/vis spectrometer, can measure absorbance over the entire spectrum (220 nm–1000 nm) in less than one second per well. Many common assay protocols are predefined, just a mouse click away, making it an ideal instrument to capture all the absorbance assays in a microplate or cuvette.

Features

  • High-speed absorbance measurements
  • Measurements in up to 1536-well plates
  • Integrated cuvette port
  • LVis Plate compatibility
  • Incubation up to 45 °C
  • Multiple shaking options
  • Well scanning at up to 900 data points per well

Technical Specifications

Detection Modes

UV/vis absorbance spectra

Measurement Modes

Endpoint and kinetic
Spectral scanning (absorbance)
Well scanning

Microplate Formats

6 to 1536-well plates, user-definable
LVis Plate with 16 low-volume microspots (2 μL)

Microplate Carrier

Robot compatible

Light Sources

High energy xenon flash lamp

Detectors

CCD Spectrometer

Wavelength Selection

UV/vis absorbance spectrometer
Full spectra or 8 distinct wavelengths in < 1 s/well

Spectral Range

220–1000 nm

Sensitivity

Full spectrum captured in < 1 s/well
Selectable spectral resolution: 1, 2, 5, and 10 nm
OD range: 0 to 4 OD
Accuracy: < 1% at 2 OD
Precision: < 0.5% at 1 OD and < 0.8% at 2 OD

Read Times

Full spectrum from 220 to 1000 nm in less than 1 s/well

Shaking

Linear, orbital, and double-orbital with user-definable time and speed

Purge Gas Vent

System to inject an atmosphere or to pull a vacuum into the reader

Incubation

+3 °C above ambient up to 45 °C
The upper heating plate of the incubation chamber operates at 0.5 °C more than the lower plate. This prevents condensation build-up on the lid or sealer.

Software

Multi-user Reader Control and MARS Data Analysis Software included
FDA 21 CFR Part 11 compliant

Dimensions

Width: 36 cm, depth: 50 cm, height: 16 cm; weight: 10 kg



Optional Accessories

LVis Plate

Sample capacity: 16 separate microdrop wells for 2 µL samples; one standard cuvette position for up to 1 mL samples.
Quality control internal standards (optional): four NIST traceable optical density filters (approximate values of 0.1, 0.3, 0.6 and 1.0 OD); one holmium oxide filter for wavelength accuracy.
Dimensions: conforms to SBS standards for microplates.

THERMOstar

Microplate incubator and shaker

Upgrades

Please contact your local representative for upgrades including options such as detection modes, reagent injectors, etc.
