PE-300 High-Resolution Field Emission SEM

Need more information?

Let us help you with your inquiries, brochures and pricing requirements

ModuleSci logo.

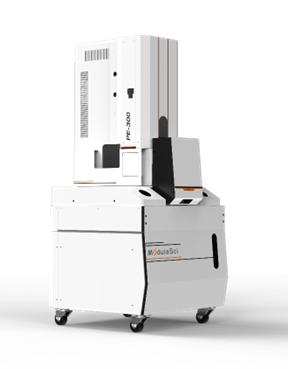

The PE-300 is a Field Emission (Schottky) SEM with high resolution and contrast, enabling users to obtain detailed image information.

Featuring an innovative compact FE electron gun made of mild steel with double O-ring sealing, the PE-300 offers fast and accurate gun axis alignment.

With superior quality and a competitive price, the PE-300 is the ideal tool when users’ applications require exceptional imaging. Available with BSE, SE, and EDS.

Specifications

Source: ModuleSci Co., Ltd

. .
Dimensions (mm) 760 (W) x 850 (L) x 1650 (H)
Electron Source FE (Schottky)
Resolution 2.0 nm
Magnification 20x – 300,000x
Effective Magnification 200,000x
Accelerating Voltage 0.5 – 30 kV
5-axis Motorized Stage X,Y,Z,R,T
Vacuum System Rotary Pump, TMP, Ion Pump
Vacuum 10-6 torr
