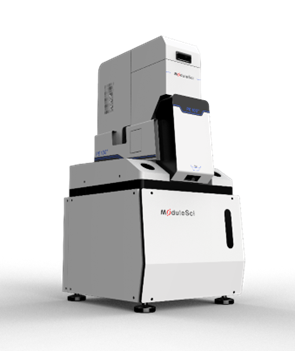

The PE-100 from ModuleSci is a compact SEM with full-size performance. Supplied with a tungsten filament source, the PE-100 has an effective magnification of more than 100,000×.
Perfect for imaging larger samples as a result of its oversized chamber, the PE-100 comes with an impressive set of features usually seen on more expensive microscopes, including both a Navigation Camera and a Chamber Camera for increased versatility. Available with SE, BSE, and EDS.
Specifications
Source: ModuleSci Co., Ltd
| . |
. |
| Dimensions (mm) |
670 (W) x 780 (L) x 1750 (H) |
| Electron Source |
Tungsten Filament |
| Resolution |
3.0 nm |
| Magnification |
20x – 300,000x |
| Effective Magnification |
100,000x |
| Accelerating Voltage |
1 – 30 kV |
| 5-axis Motorized Stage |
X,Y,Z,R,T |
| Vacuum System |
Rotary Pump, TMP |
| Vacuum |
10-6 torr |
