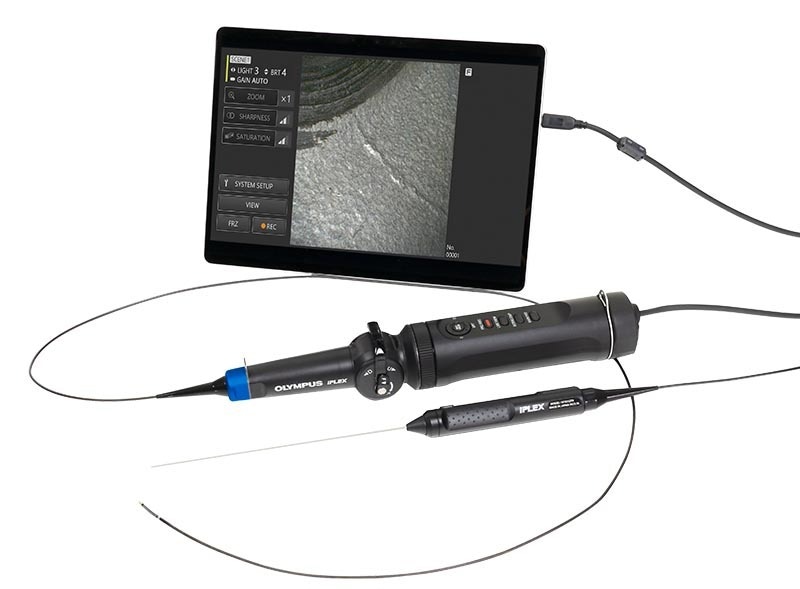

IPLEX TX II - Better Imaging in Small Spaces

The ultra-thin IPLEX TX II video borescope offers flexibility with a choice between a 2.2 mm diameter flexible scope or a 1.8 mm rigid scope. Utilizing the flexible scope allows for a wide field of view in confined spaces, facilitating faster inspections and simplifying decision-making processes. With its blend of high image quality and user comfort, the IPLEX TX II videoscope facilitates efficient inspection of castings, molds, and other components with small cavities.

Repeatable RVI Results

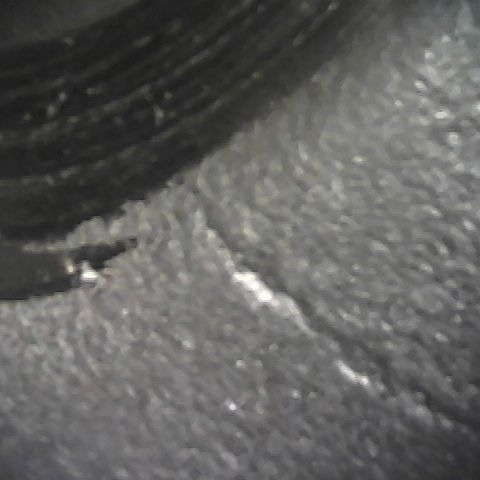

IPLEX TX (predecessor).

IPLEX TX (predecessor). Image Credit: Evident Corporation - Industrial Microscopy

The IPLEX TX II videoscope provides enhanced image quality to aid in decision-making and easier insertion to help users reach their target more quickly.

See More

  • 120-degree field of view to observe a wide area at once, helping speed up inspections
  • Bright LED illumination enables users to see better in large spaces
  • High-pixel CMOS sensor delivers outstanding image quality
  • Image adjustment methods—such as image turning and halation reduction—make it easier to see in reflective areas and capture clear, low-noise images
  • Scene mode allows users to create two image setting configurations and toggle between them

Inspect in Smaller Spaces

  • Access small openings with the 2.2 mm insertion tube
  • Insertion tube with a 2 mm shorter rigid distal end compared to the original IPLEX TX combined with enhanced hardness and articulation control, makes it easier to move about in more confined spaces
  • The insertion tube’s articulating section has a tungsten outer braid for added protection, while its shortened length prevents it from getting stuck
  • The rigid insertion tube's air injector allows users to blow liquid droplets away to obtain clearer images*

*The protection sleeve is a must if you want to use the air injector.

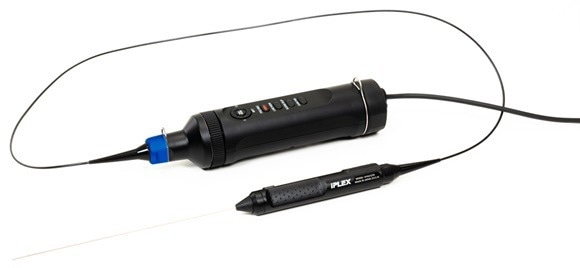

IPLEX TX II. Image Credit: Evident Corporation - Industrial Microscopy

Stay Comfortable During Long Inspections

  • Images are displayed on a tablet, so users can position it however best fits
  • The grip can be extended so that the tube can be grasped closer to the insertion point for finer control

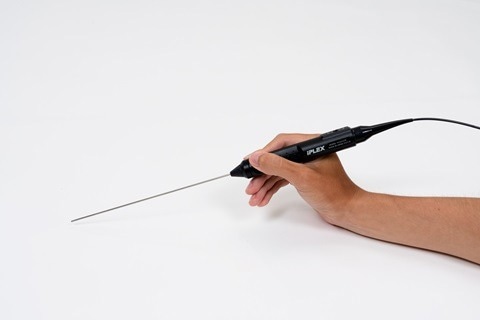

  • The ultra-lightweight rigid scope weighs as much as a ballpoint pen, so there is less strain when holding it for extended periods of time

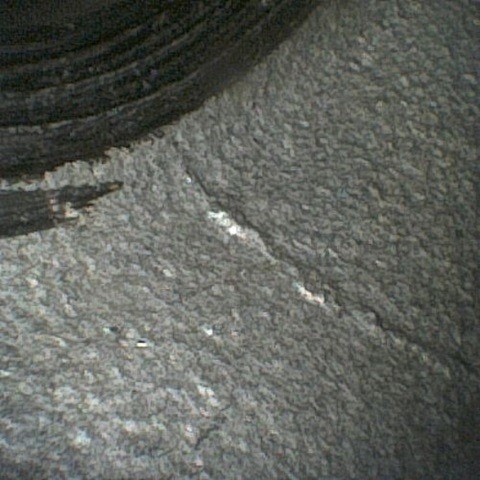

IPLEX TX II - Better Imaging in Small Spaces

Image Credit: Evident Corporation - Industrial Microscopy

Durable and Flexible

  • The articulation section of the flexible insertion tube improves overall durability
  • Metal braiding in the articulation section provides additional protection and wear resistance
  • For applications where it is a must, the optional rigid scope can be used to acquire high-quality images and pass through openings as little as 1.8 mm
  • Even if the tube is slightly damaged, images still transmit to the screen thanks to the CMOS imaging sensor in the rigid scope

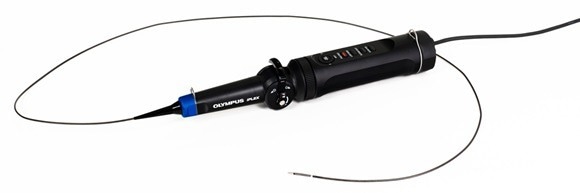

Flexible scope unit.

Flexible scope unit. Image Credit: Evident Corporation - Industrial Microscopy

Rigid scope unit.

Rigid scope unit. Image Credit: Evident Corporation - Industrial Microscopy
