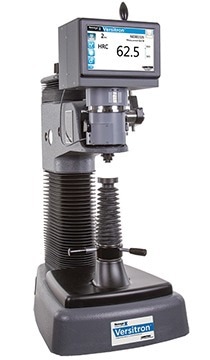

The Versitron Rockwell hardness testing system is a unique solution that utilizes top-loading and test surface referencing technologies.
By applying both the pre-load and full load in a single test cycle, users can complete a test in as little as 4 seconds.
This hardness testing equipment is well-suited for a broad range of applications—from high-volume production to sampling, from demanding shop floor environments to laboratory settings, and from testing awkwardly shaped parts to small precision components.
The clamping mechanism is built into the tester, allowing users to securely hold parts in place with up to 240 foot-pounds (325 Nm) of force. Clamping, rather than using jack screws or cutting specimens, not only improves test accuracy but also reduces testing time.
The Versitron’s innovative indenter shroud ensures consistent test surface referencing and reduces sensitivity to contamination. When the preload is applied, the shroud detects the indenter’s position relative to the test surface.
If the specimen deflects under major load, the shroud moves with it, maintaining accurate reference positioning. This design compensates for deflection and resists interference from particles like dust or even a stray hair, issues that typically compromise the accuracy of other testers.
The system features a full-color, icon-driven display for intuitive navigation. Test results are presented in large, easy-to-read text. The display is resistant to dirt and grease and is simple to clean. Its rugged interface is designed to withstand harsh industrial conditions.
Despite its heavy-duty capabilities, the Versitron offers users quick access to test data during operation, including x-charts, min/max values, and range summaries. It’s built to perform reliably in even the toughest environments.
Often referred to as the "Industry Workhorse," earlier Versitron models have remained in operation for more than 30 years.
The entire load mechanism is modular and self-contained within the test head, which can be swapped out to measure different Rockwell scales.
Versitron systems support various drive types, including standard lever-actuated, pneumatic, and electric drives, which are controllable via pushbutton or footswitch.
Test results can be exported directly to DataView for analysis or saved as a CSV file.
The Versitron is CE marked and fully compliant with ASTM E-18, DIN, EN, ISO, and other applicable standards.
Versitron Features and Benefits
Heavy-Duty Clamping
The Versitron eliminates the need for jack rests. It can clamp specimens weighing up to 240 ft-lbs in just seconds.
User-Friendly and Durable Design
An icon-driven color display and tactile button interface make the tester easy to operate. The system is also built for long-term durability, even in demanding environments.
Diamond Protection
A removable clamping shield protects the diamond indenter from accidental damage, such as when test samples shift under load and make contact with the diamond.
Minimal Impact from Dirt
Cleaning the test part before testing is not required.
Fast and Simple Operation
Tests can be completed in as little as 4 seconds, even with manual operation. Little training is needed for operators.
Test Surface Referencing
Accurate results are maintained by referencing the test surface. This helps eliminate errors caused by vibration or debris.
Modular System Architecture
The Versitron can be configured to meet current testing needs with the flexibility to adapt in the future. Choose from various frames, drive mechanisms, indenters, and accessories. Modular test heads are easily removed for calibration or software upgrades.
